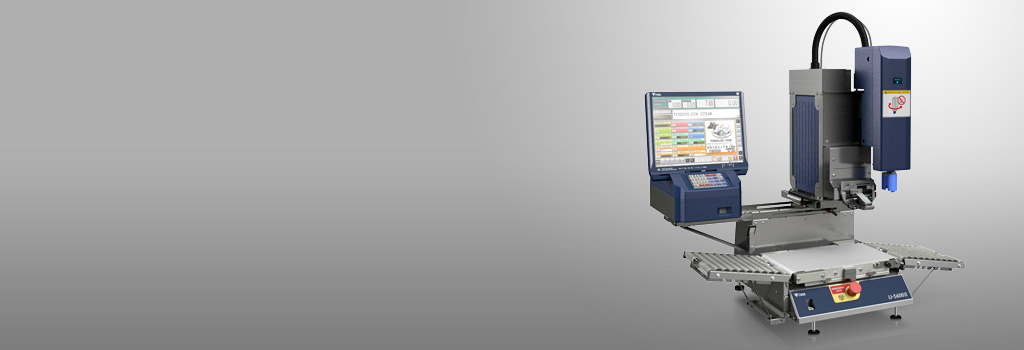

LI-5600II

A convenient and complete solution for a wide range of in-store applications

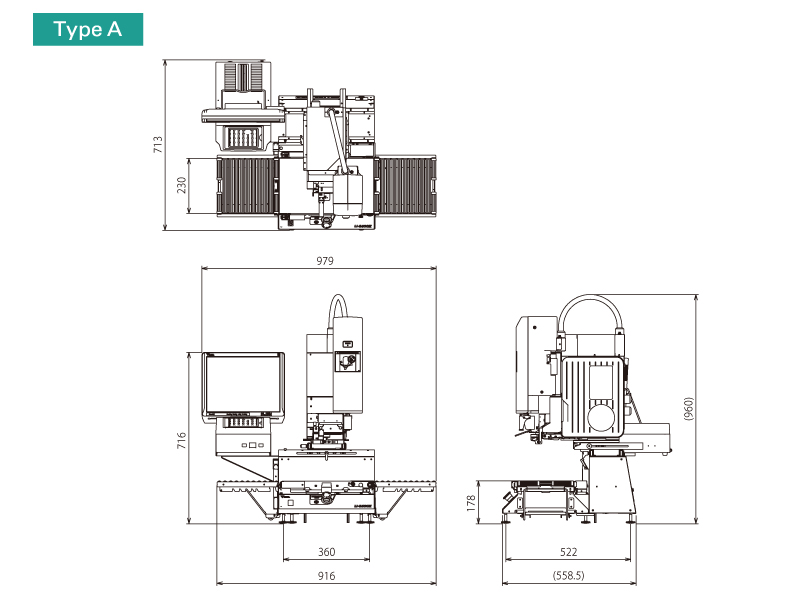

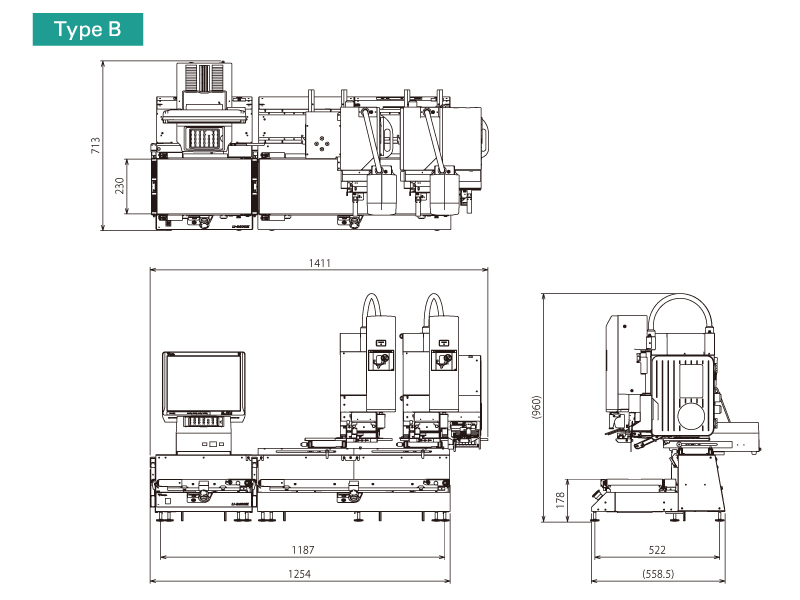

Dimensions

Conveyor

Model	Type A	Type B
Speed	Max. 26 packages/min.	Max. 35 packages/min.
Package Size	Width: 50-390 mm/1.9-15.4 inches Height: 1-150 mm/0.04-5.9 inches Depth: 50-230 mm/1.9-9.1 inches
Direction	Left → Right or Right → Left

Weighing

* Unit varies by country

Interval type	Multi-interval		Single-interval
Capacity	Max 3/6 kg	Max 6/15 kg	Max 30 lb
Scale interval	e=1/2 g	e=2/5 g	e=0.01 lb
Weighing range	20 g-6 kg	40 g-15 kg	0.20-30 lb
Conveyor capacity	Max 6 kg	Max 15 kg	30 lb

Thermal printer

* Maximum printing length is 300 mm/11.8 inches

Model	Type A and B
Labeling application	Automatic application		Manual application
Label type	Die-cut Label	Linerless Label	Die-cut Label	Linerless Label
Label size	Width: 40-80 mm/ 1.57-3.15 inches Length: 28-105 mm/ 1.10-4.13 inches	Width: 44-78 mm/ 1.73-3.07 inches Length: 28-105 mm/ 1.10-4.13 inches	Width: 40-80 mm/ 1.57-3.15 inches Length: 20-150 mm/ 0.79-5.91 inches	Width: 44-78 mm/ 1.73-3.07 inches Length: 20-500 mm/ 0.79-19.69 inches* * Maximum printing length is 300 mm/11.8 inches
Labeling angle	0 or 90 or 180 or 270 degree
Font	True type font

Operation console

Display panel	TFT LCD color (15 inches) touch panel
Memory for programmable files	32 GB

General

Model	Type A	Type B
Power source and power consumption	230 V;1 φ;50/60 Hz;0.7 A;160 W	Scale Conv: 230 V;1 φ;50/60 Hz;0.8 A;160 W Labelling Conv: 230 V;1 φ;50/60 Hz;0.9A;165 W
Net weight	Approx. 59 kg	Approx. 112 kg (TWIN + POP labeler type)
