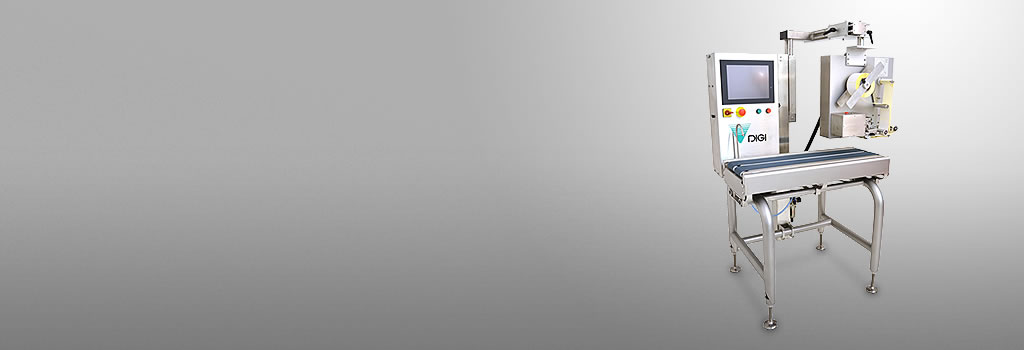

HC-700E

High speed print and apply system

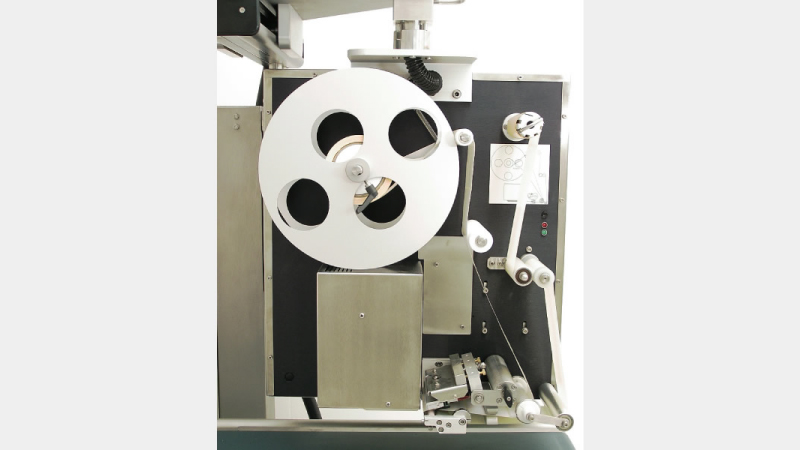

Labeler option - Classic type

80mm or 108mm thermal head both being 11.8dots/mm (300dpi)

Applicators: touch, air box, concave shoe, stamp
标签尺寸：宽度：30至120毫米，身高：28至150mm
Label roll: Roll diameter 300mm, Core diameter 76mm, Outside or inside wound
Print speed: 50 to 260mm/sec

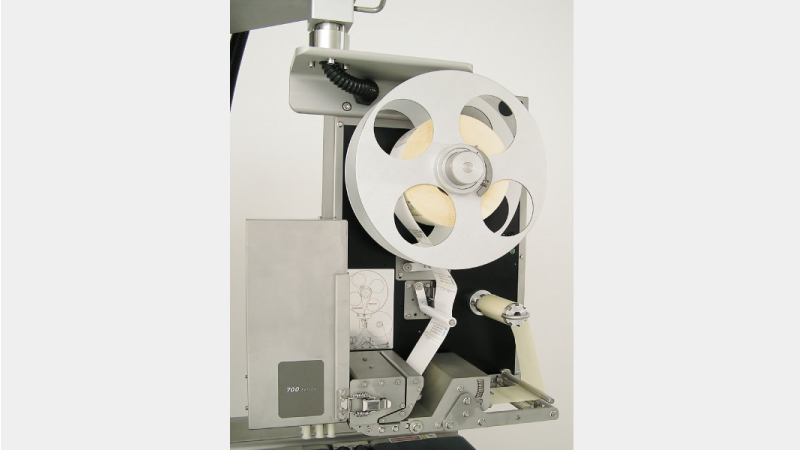

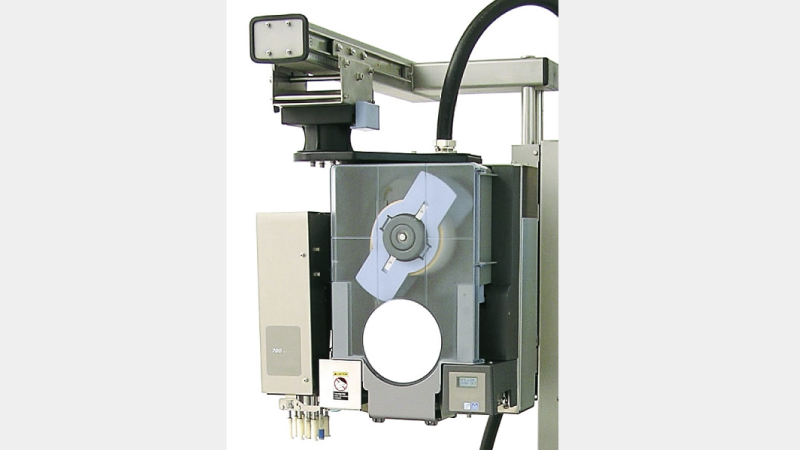

Labeler option - Cassette type

Separate cassette units are pre-loaded with the required labels to obtain quick label changes.
Hinged label applicator: allows the label applicator to be moved away from the thermal head area for good access for thermal head cleaning / inspection
Thermal head sizes: 80mm at 11.8dots/mm (300dpi)
Applicator: 11 finger touch

Label size: Width: 40 to 80 mm, Height: 28 to 80mm

Label roll: Roll diameter 190mm, Core diameter 76mm, Outside or inside wound

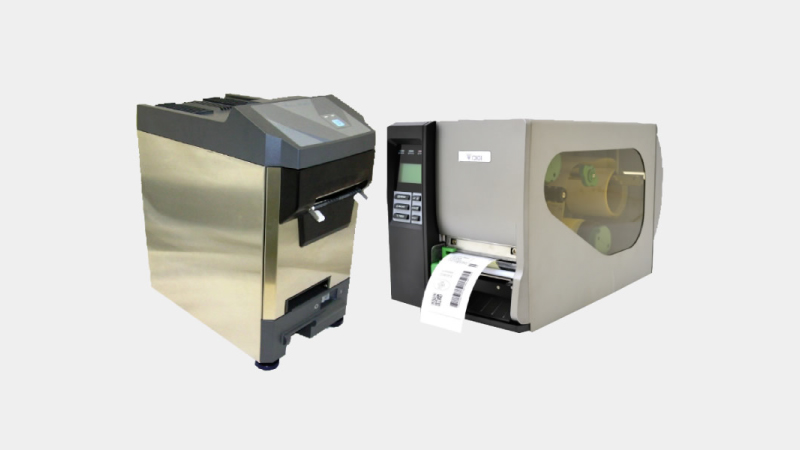

Additional printers

The flexibility of the HC-700E allows other industrial type printers that support TCP/IP communication to be connected.

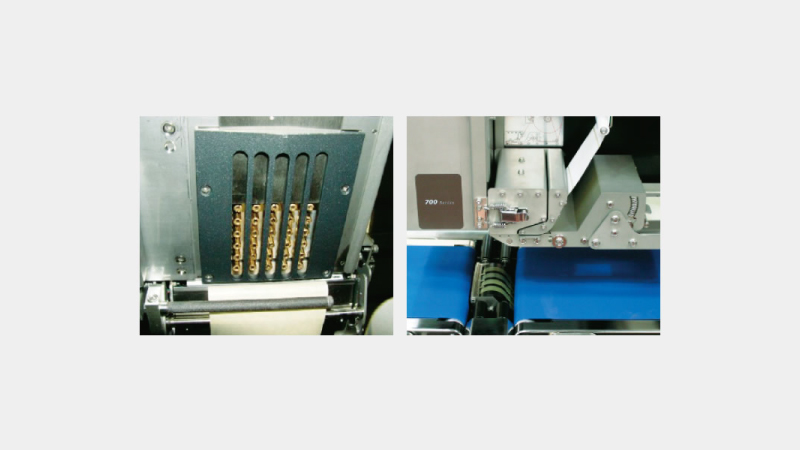

Label applicators

When using the classic or high speed labeler there is a range of label applicators to reliably apply many shapes and sizes of labels to the pack.

Labeler option - High speed

80mm or 108mm thermal head both being 11.8dots/mm (300dpi)
Applicators: touch, air box
标签尺寸：宽度：30至120毫米，身高：28至150mm
Label roll: Roll diameter 300mm, Core diameter 76mm, Outside or inside wound
Print speed: 50 to 260mm/sec
near edge printing

Options

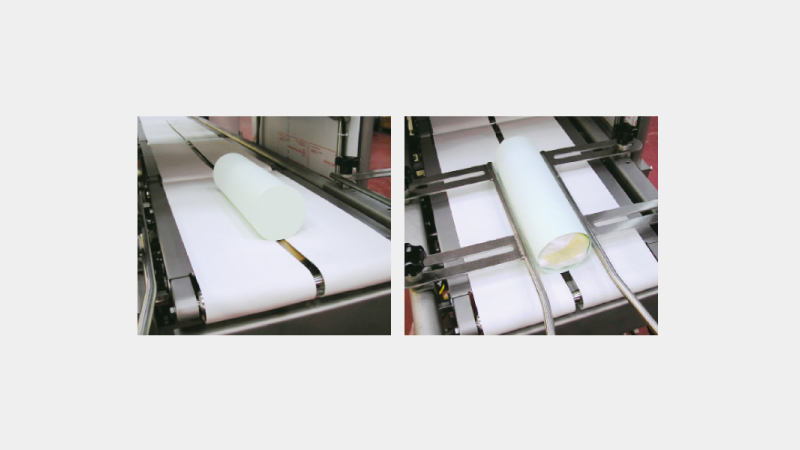

V deck

When salami / sausage or a similar shaped product is to be used on the standard 900mm long conveyor deck an optional V conveyor system is available.
The central part of the conveyor deck has a V shaped profile and using wider conveyor belts the product can be transferred along the V without rolling sideways.
Suitable pack guides can be used to aid stability.

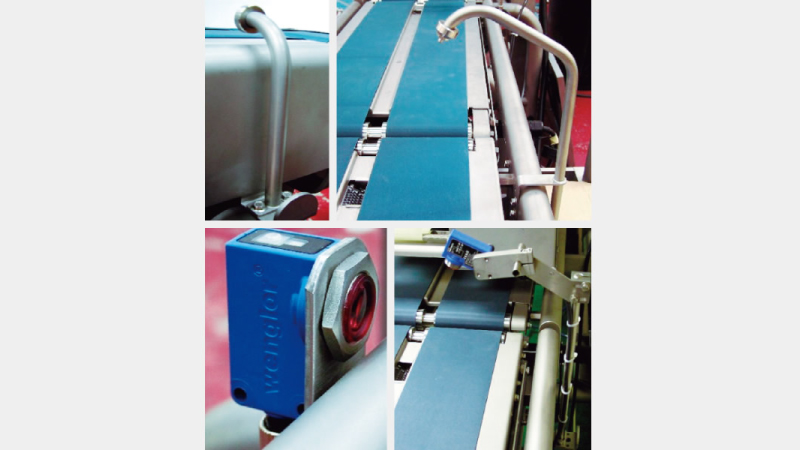

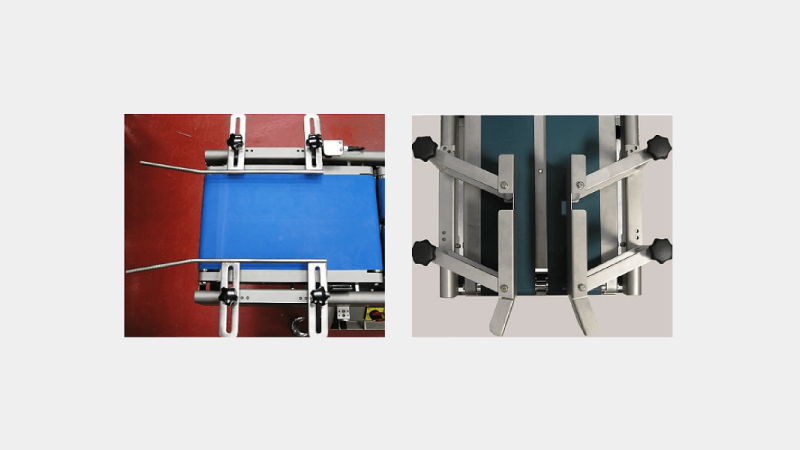

Pack guides

There are various pack guides to suit different types of packs. Examples of these are the infeed rod guides, outfeed rod guides, HDPE material type and tall version of the standard HI guides.

Gravity outfeed rollersA gravity roller kit can be fixed to the infeed / outfeed of the machine.Two lengths are available.Once fixed to the machine the angle of which the roller assembly sits can be adjusted.

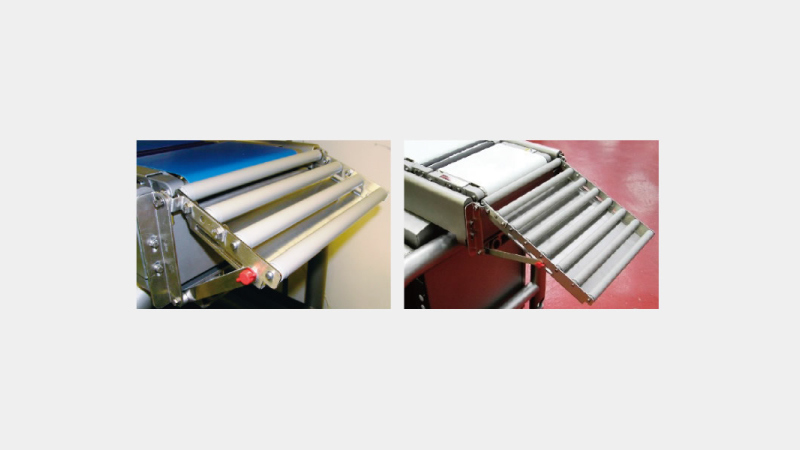

Gravity outfeed rollers

A gravity roller kit can be fixed to the infeed / outfeed of the machine.
有两个长度可用。
Once fixed to the machine the angle of which the roller assembly sits can be adjusted.

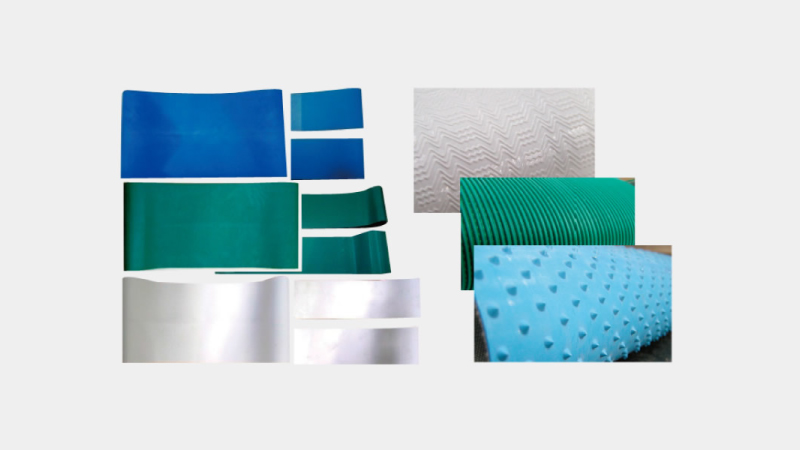

Conveyor belts

A wide range of conveyor belts is available to cater for many different applications and environments.

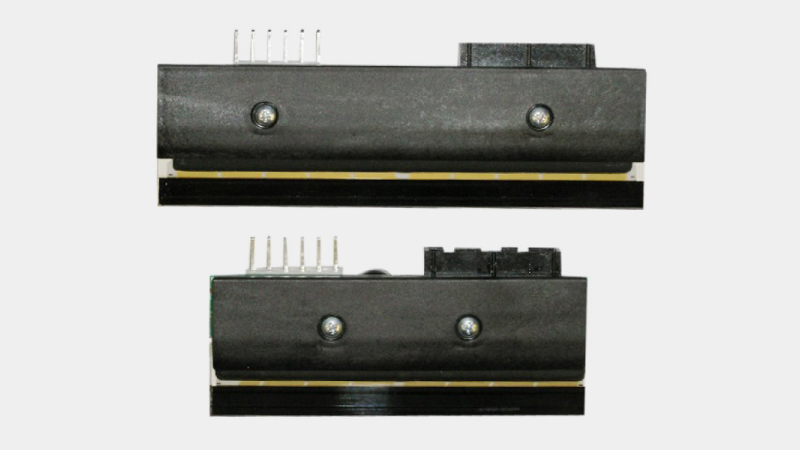

Thermal heads

As standard an 80mm wide thermal head is fitted to high speed and classic labelers. A 108mm wide thermal head is available for these two labelers. Both size thermal heads have the same definition of 300dpi (11.8 dots/mm).

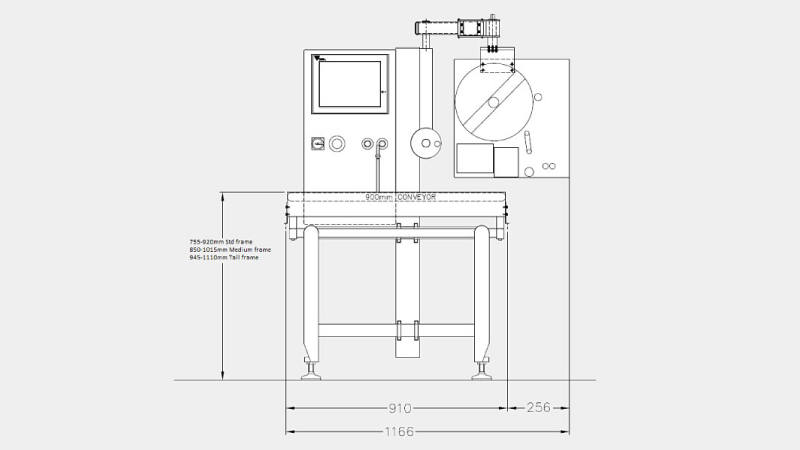

Frame height

To cater for various height production lines, there are three frame height options. The standard height frame gives a conveyor height range of 755-920mm, the medium frame 850-1015mm and the tall frame option gives a conveyor height range of 945-1110mm.
