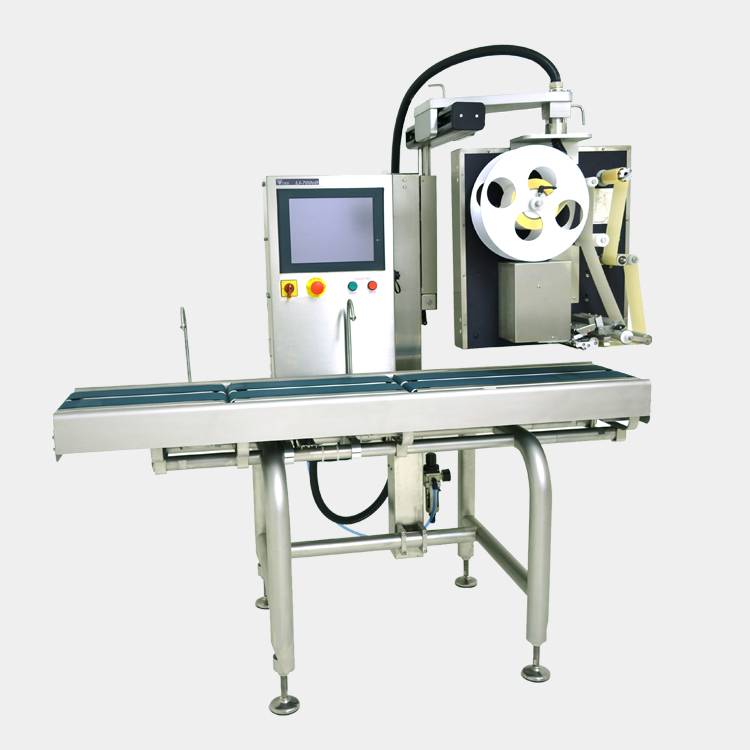

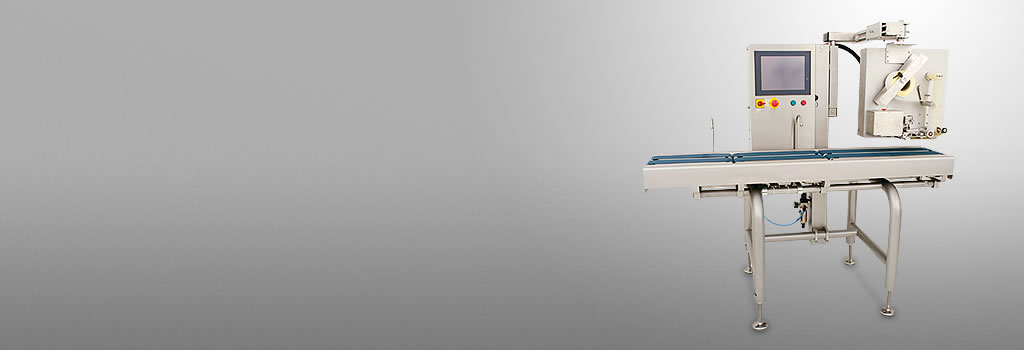

LI-700E

Entry level stop to weigh price labeler

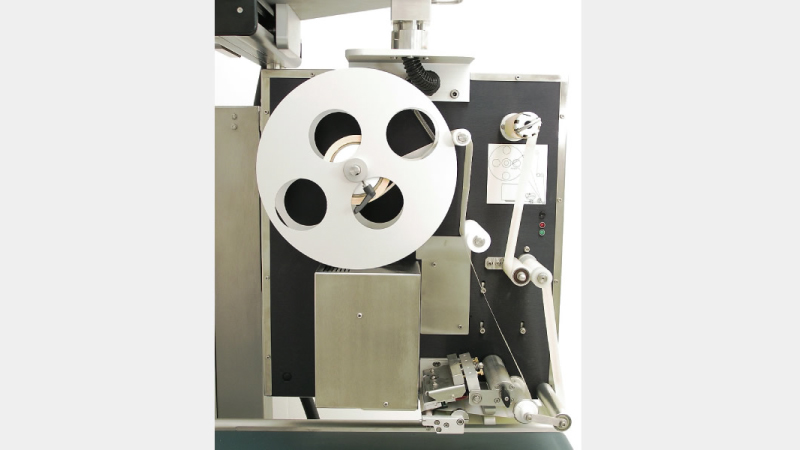

Labeler option - Classic type

80mm or 108mm thermal head both being 11.8dots/mm (300dpi)

Applicators: touch, air box, concave shoe, stamp
Label size: Width: 30 to 120 mm, Height: 28 to 150mm
Label roll: Roll diameter 300mm, Core diameter 76mm, Outside or inside wound
Print speed: 50 to 260mm/sec
Platen roller

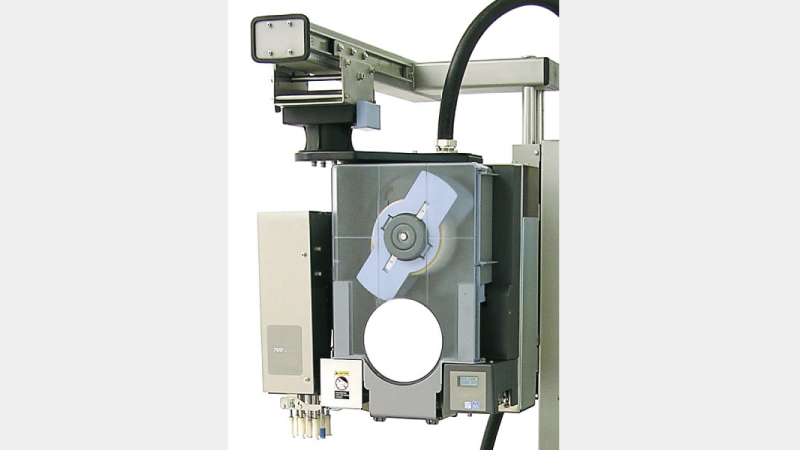

Labeler option - cassette type

Separate cassette units are pre-loaded with the required labels to obtain quick label changes.
Hinged label applicator: allows the label applicator to be moved away from the thermal head area for good access for thermal head cleaning / inspection
Thermal head sizes: 80mm at 11.8dots/mm (300dpi)
Applicator: 11 finger touch
Label size: Width: 40 to 80 mm, Height: 28 to 80mm
Label roll: Roll diameter 190mm, Core diameter 76mm, Outside or inside wound
Print speed: 50 to 200mm/sec

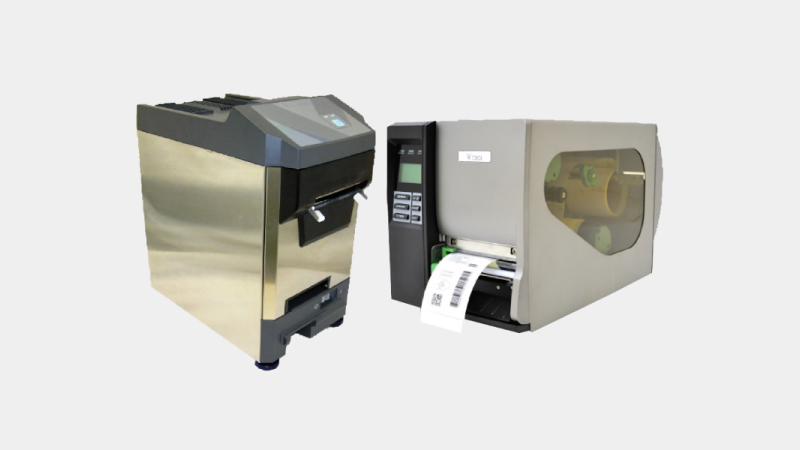

Additional printers

The flexibility of the LI-700E allows other industrial type printers that support TCP/IP communication to be connected

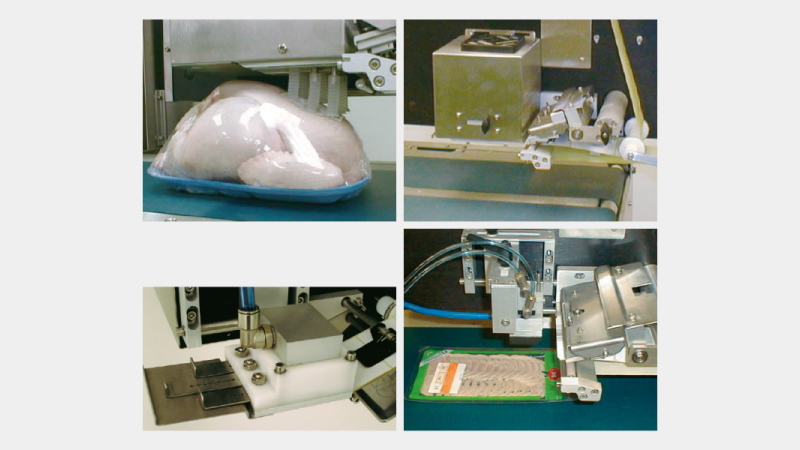

Label applicators

If using the classic labeler there is a range of label applicators to reliably apply many shapes and sizes of labels to the pack.

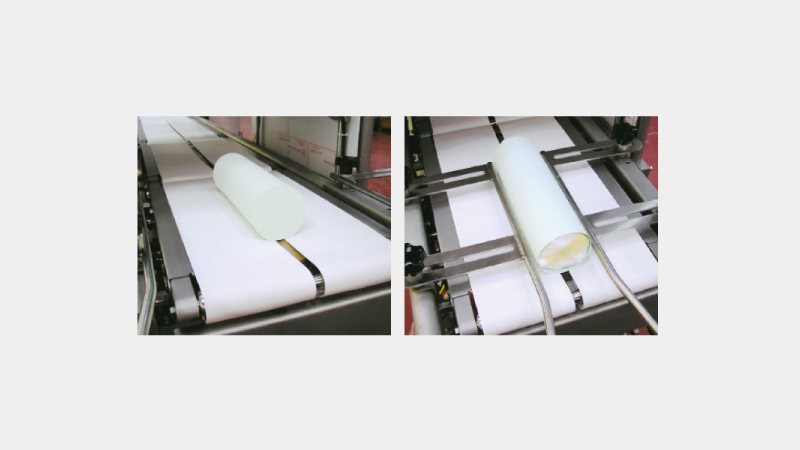

V deck

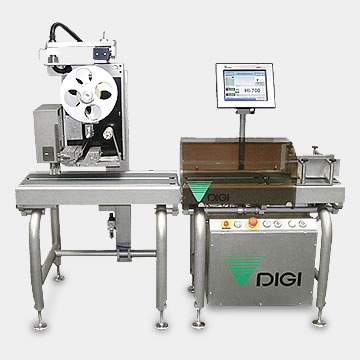

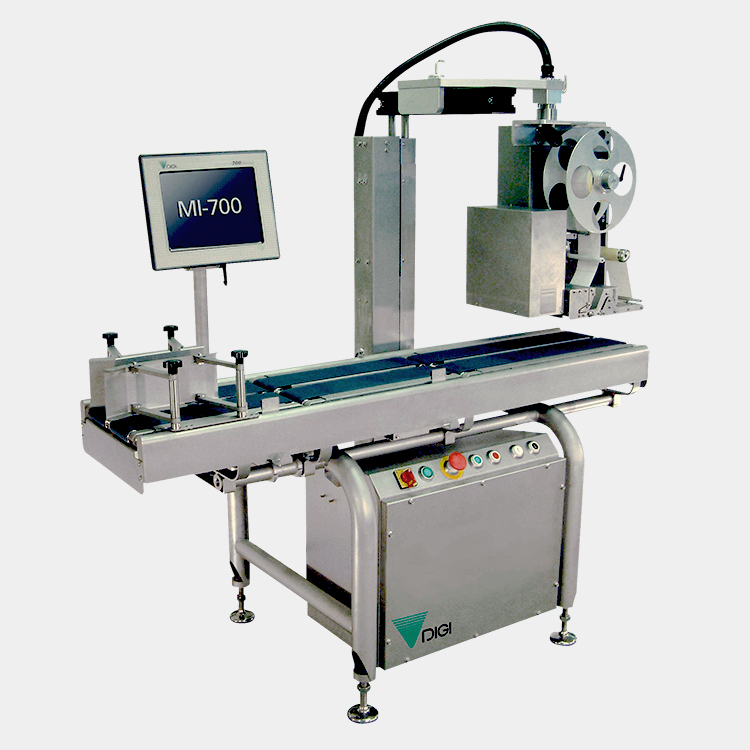

When salami / sausage or a similar shaped product is to be used on the 700 series weigh price labeler (e.g. HI, MI, LI) an optional V conveyor system is available. The central part of the conveyor deck has a V shaped profile and using wider conveyor belts the product can be transferred along the V without rolling sideways. Suitable pack guides can be used to aid stability. V decks not available for LI-700CR.

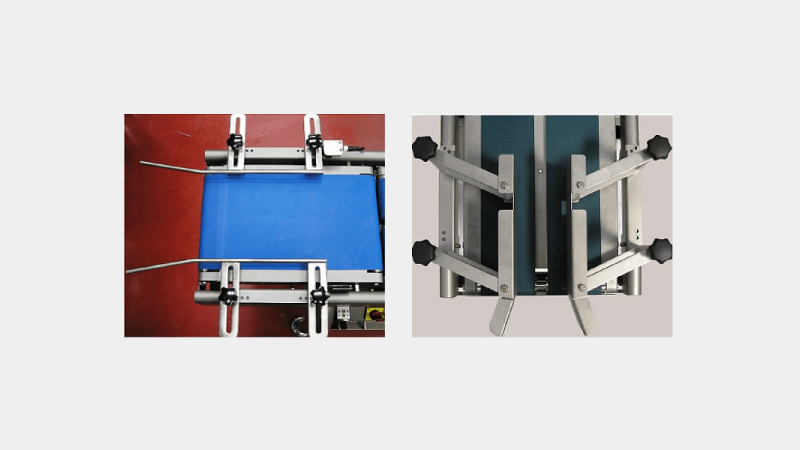

Pack guides

There are various pack guides to suit different types of packs. Examples of these are the infeed rod guides, outfeed rod guides, HDPE material type and tall version of the standard HI guides

Gravity outfeed rollersA gravity roller kit can be fixed to the outfeed of the machine.Two widths and two lengths are available.Once fixed to the machine the angle of which the roller assembly sits can be adjusted.

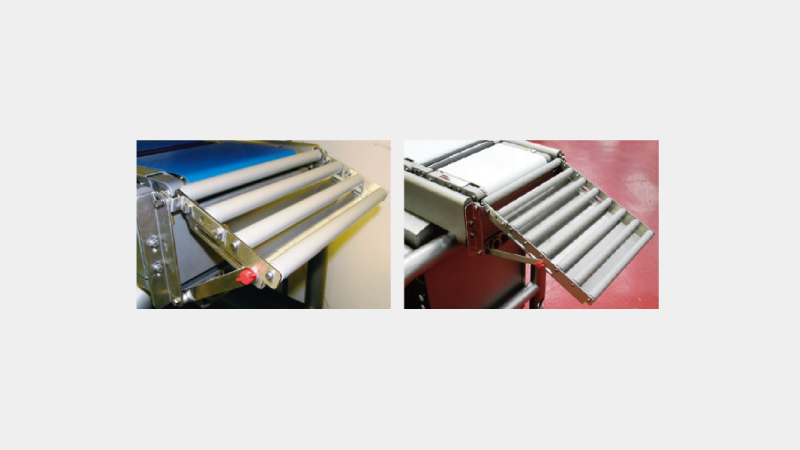

Gravity outfeed rollers

A gravity roller kit can be can be fixed to the outfeed of the machine.
Two widths and two lengths are available.
Once fixed to the machine the angle of which the roller assembly sits can be adjusted. Not suitable for LI-700CR.

输送带广泛的传送带available to cater for many different applications and environments.

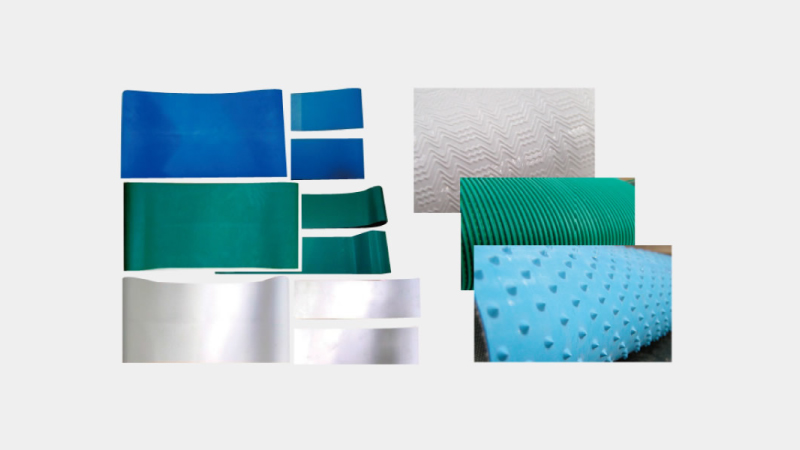

Conveyor belts

A wide range of conveyor belts is available to cater for many different applications and environments.

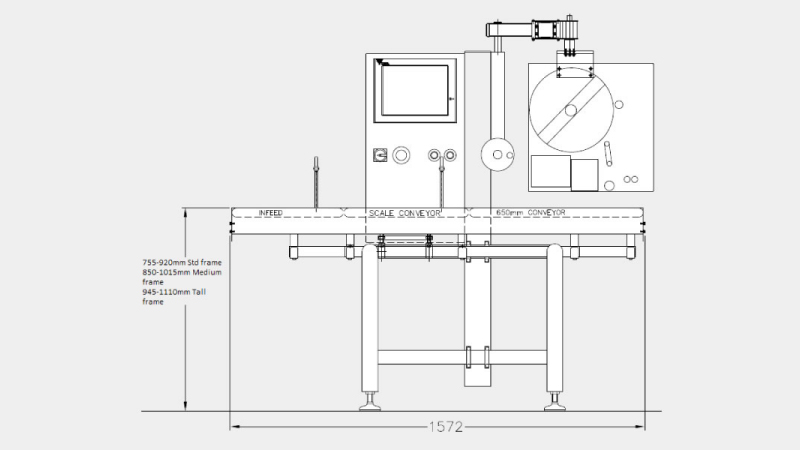

Frame heightTo cater for various height production lines, there are three frame height options. The standard height frame gives a conveyor height range of 755-920mm, the medium 850-1015mm and the tall frame option gives a conveyor height range of 945-1110mm.

Frame height

满足不同高度生产线,其他e are three frame height options. The standard height frame gives a conveyor height range of 755-920mm, the medium 850-1015mm and the tall frame option gives a conveyor height range of 945-1110mm. The LI-700CR has one frame giving a conveyor height of 800-850mm.
