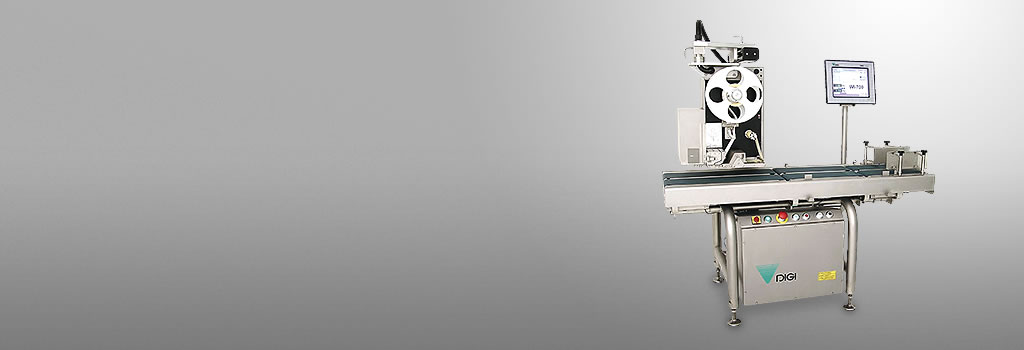

WI-700
Mid range wide conveyor dynamic weigh price labeler

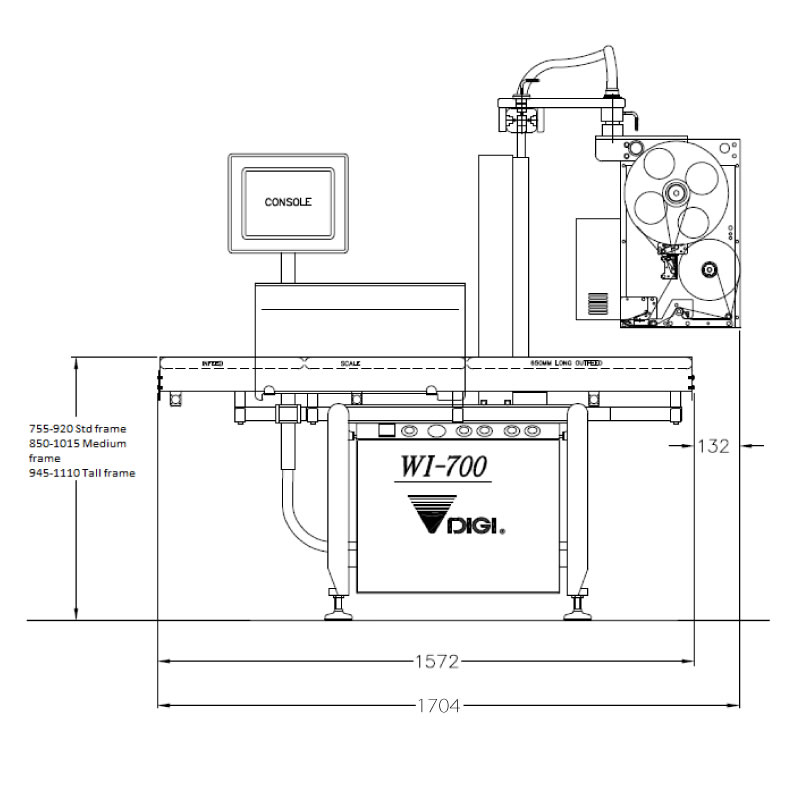

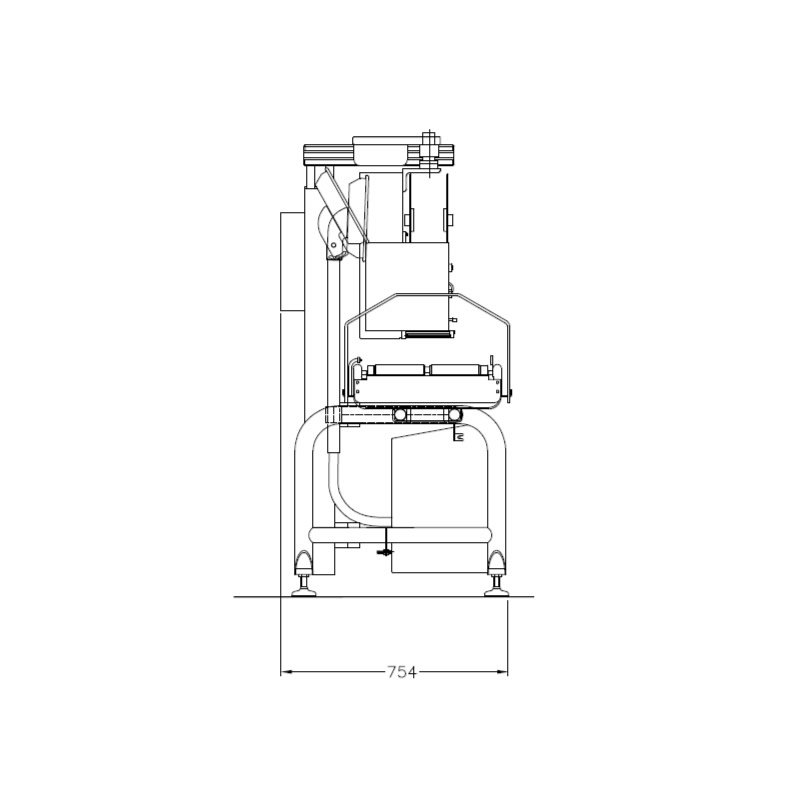

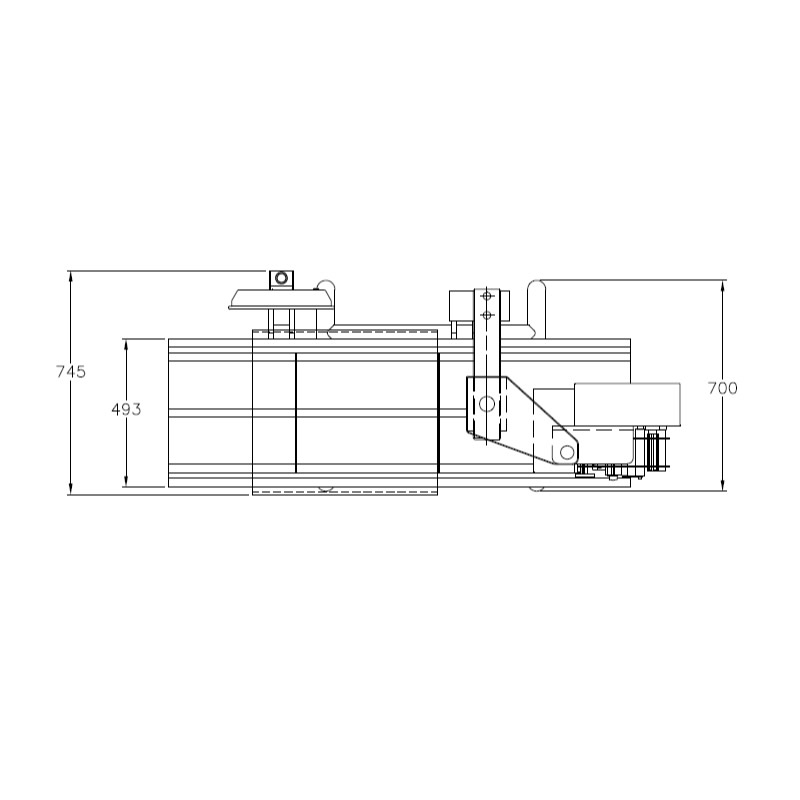

Dimensions
Weighing
| Capacity | Max 6 kg | Max 12 kg |
|---|---|---|
| Single Interval | e= 1g or greater | e= 2g or greater |
Display
| Screen | 12.1 Color LED display |
|---|---|
| Touch panel | 12.1 pen/finger resistive type |
Operation and general specification
| Pack speed | up to 70 packs per minute |
|---|
Pack size
| Pack size capable | Length: 80 to 300mm, Width: 40 to 350mm, Height: 180mm maximum |
|---|
for standard length scale of 470mm long
Labeler - high speed
| Label size | Width: 30 to 120mm, Height: 28 to 150mm |
|---|---|
| Label roll | max 300mm diameter, 76mm core, inside/outside wound |
| Label application system | 9 finger touch, Multijet air box |
| Print speed | 50 to 260mm/sec |
| Print head | 80mm at 300dpi, 108mm at 300dpi |
