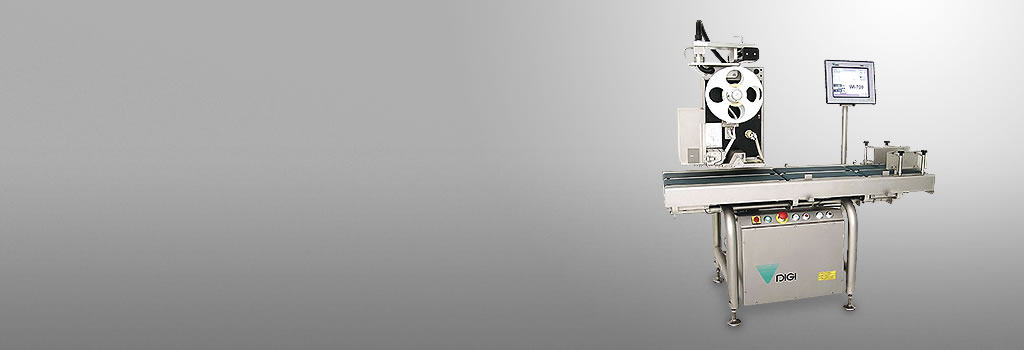

WI-700
Mid range wide conveyor dynamic weigh price labeler

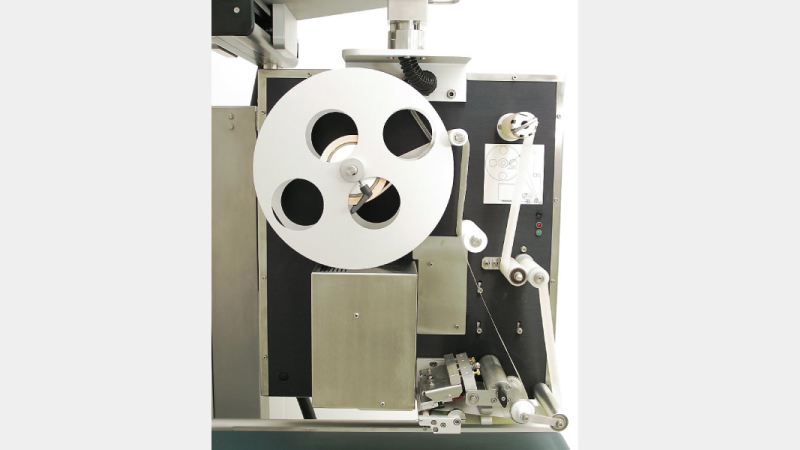

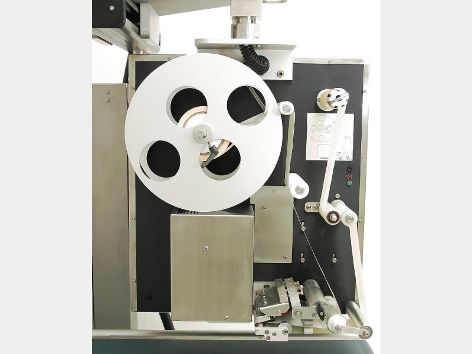

Labeler option - Classic type
Applicators: touch, air box, concave shoe, stamp
Label size: Width: 30 to 120 mm, Height: 28 to 150mm
Label roll: Roll diameter 300mm, Core diameter 76mm, Outside or inside wound
Print speed: 50 to 260mm/sec
Platen roller

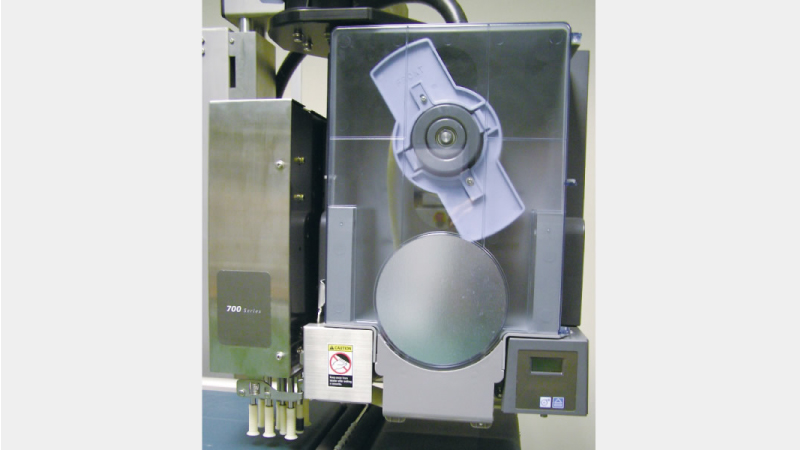

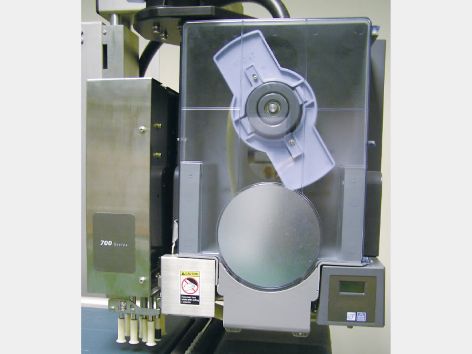

Labeler option - Cassette type
Hinged label applicator: allows the label applicator to be moved away from the thermal head area for good access for thermal head cleaning / inspection
Thermal head sizes: 80mm at 11.8dots/mm (300dpi)

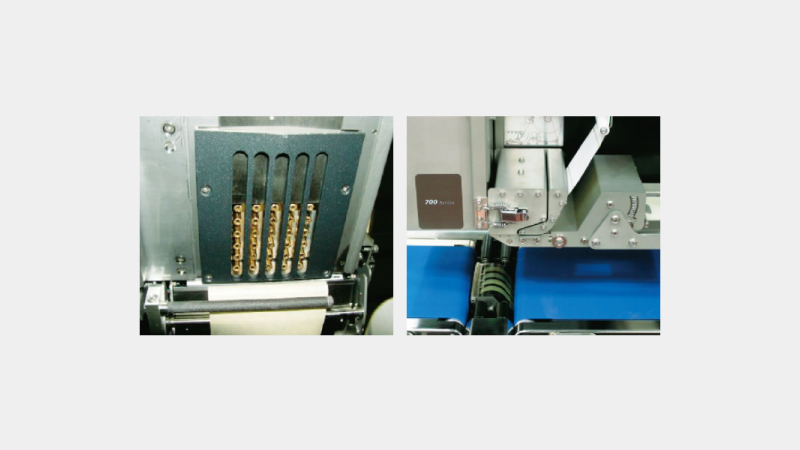

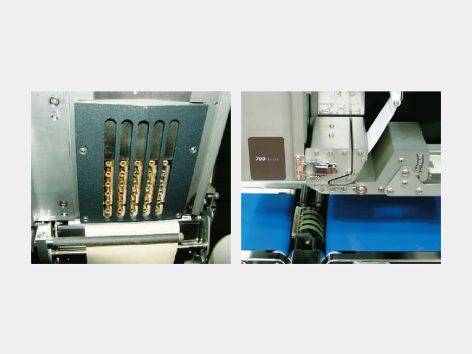

Applicator: 11 finger touch
Label size: Width: 40 to 80 mm, Height: 28 to 80mm, Label roll Roll diameter 190mm, Core diameter 76mm, Outside or inside wound
Print speed: 50 to 200mm/sec

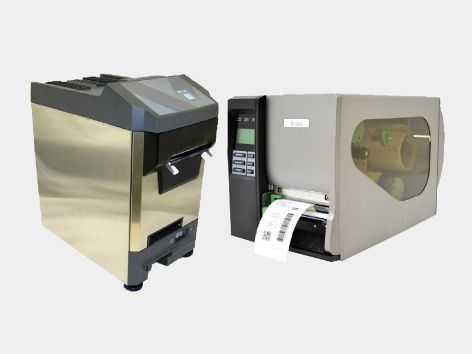

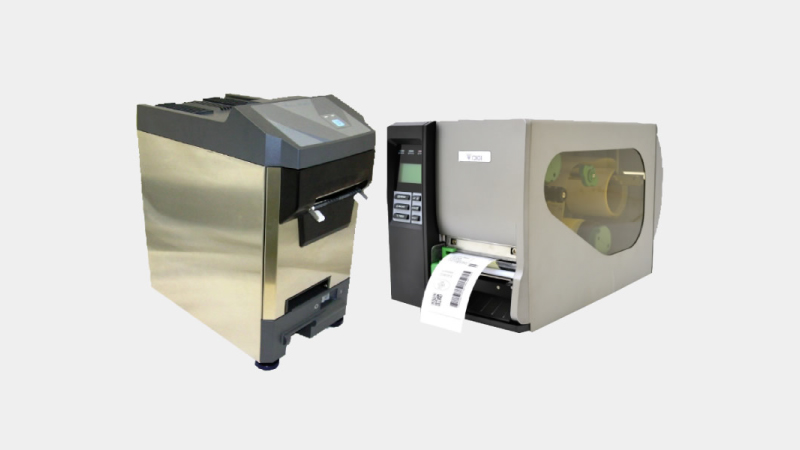

Additional printers
Label applicators
Options

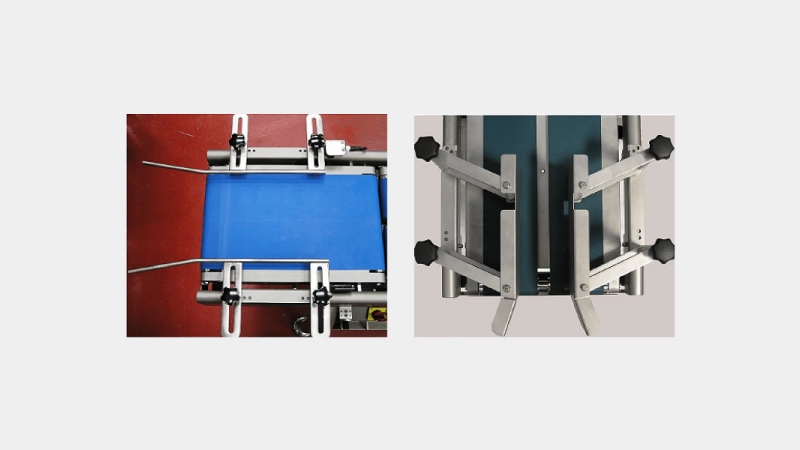

Pack guides
There are various pack guides to suit different types of packs. Examples of these are the infeed rod guides, outfeed rod guides, HDPE material type and tall version of the standard HI guides

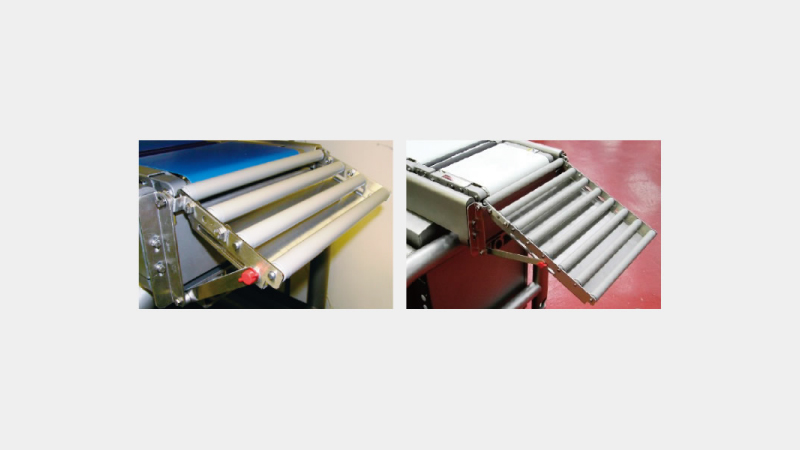

Gravity outfeed rollers
A gravity roller kit can be fixed to the outfeed of the machine.
Two widths and two lengths are available.
Once fixed to the machine the angle of which the roller assembly sits can be adjusted.

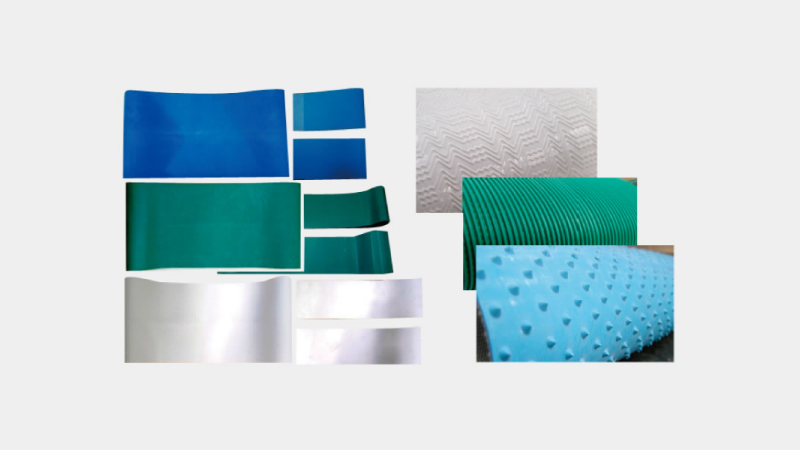

Conveyor belts
A wide range of conveyor belts is available to cater for many different applications and environments.

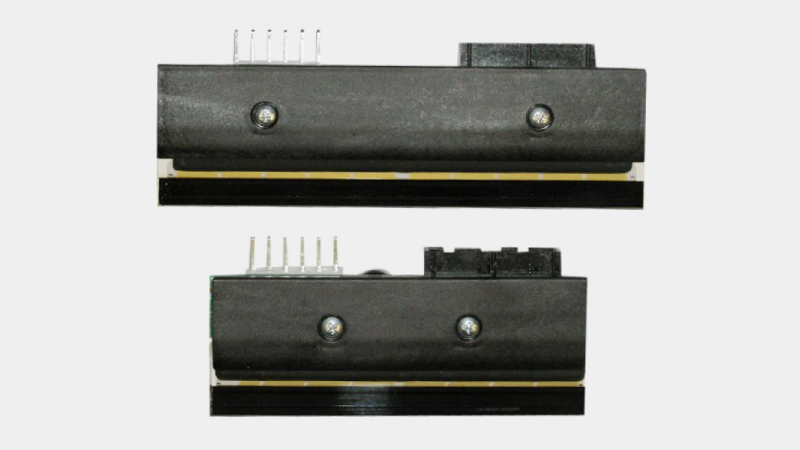

Thermal heads
As standard an 80mm wide thermal head is fitted to high speed and classic labelers. A 108mm wide thermal head is available for these two labelers. Both size thermal heads have the same definition of 300dpi (11.8 dots/mm).

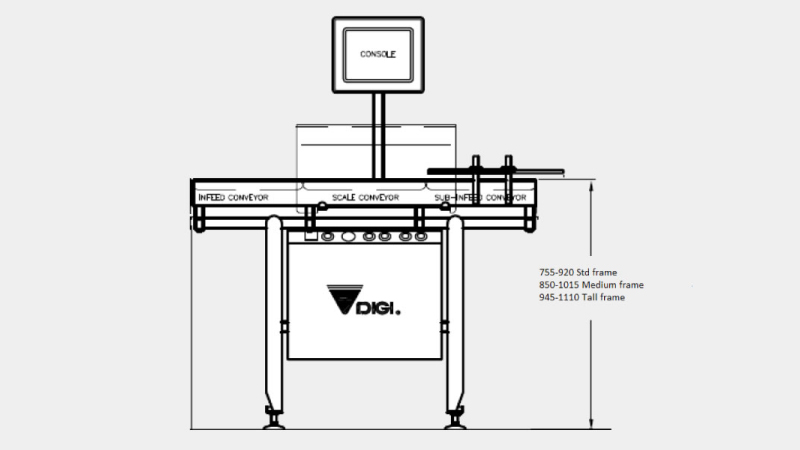

Frame height
To cater for various height production lines, there are three frame height options. The standard height frame gives a conveyor height range of 755-920mm, medium frame 850-1015 and the tall frame option gives a conveyor height range of 945-1110mm.

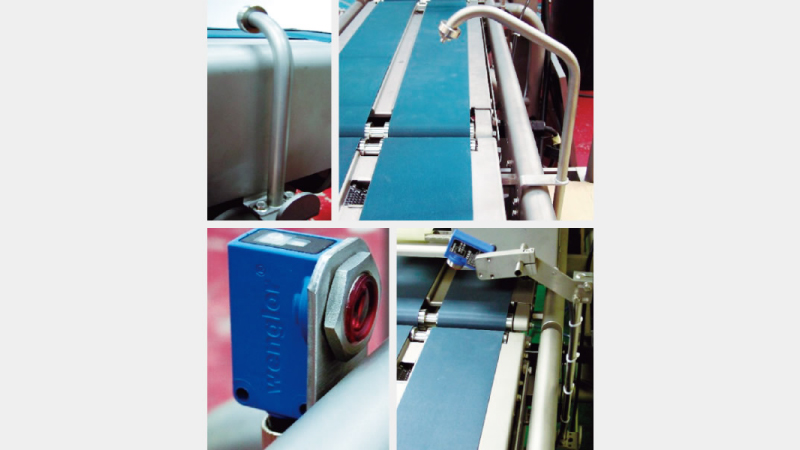

Pack sensors
To ensures reliable sensing of packs, different types of pack sensors are available and can be mounted horizontally or over head.
