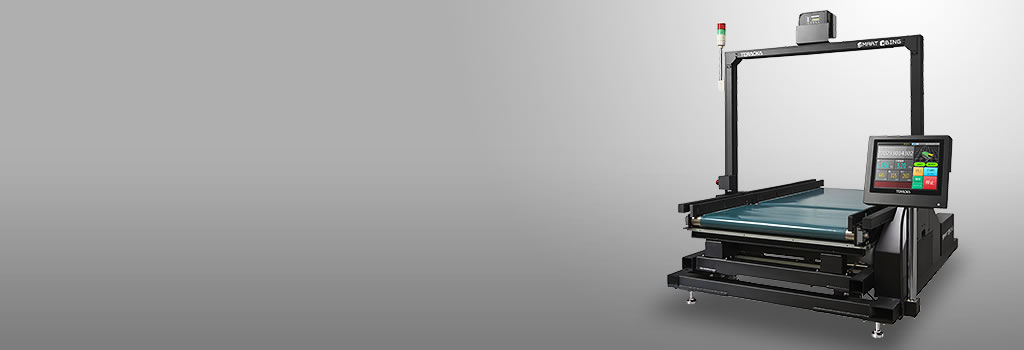

SMART QBING
这汽车matic in-motion dimensioning and weighing system offers speedy measurement of package dimensions and weight on a conveyor. Measures items down to 5 mm thickness - an industry first.
SMART QBING specification
|
SQ-2002 SQ-2003 |
SQ-2202 SQ-2203 |
SQ-2200 |
SQ-3002 SQ-3003 |
SQ-3302 SQ-3303 |
平方- 3300 |
SQ-4302 |
|
|---|---|---|---|---|---|---|---|
|
Conveyor width |
600mm | 900mm | 1220mm | ||||
|
Function |
Weighing | Measurement･ Weighing |
Measurement | Weighing | Measurement･ Weighing |
Measurement | Measurement･Weighing |
|
Minimum package size(mm) |
150(L)× 100(W)× 30(H) (*) When using thin item detection option, it becomes 5mm (H). |
||||||
|
Maximum package size |
1530(L)× 600(W)× 600(H) | 1530(L)× 900(W)× 900(H) | 1530(L)× 1220(W)× 900(H) | ||||
|
Dimension scale |
N/A | 5mm | N/A | 5mm | |||
|
Size detection |
N/A | Infrared transmission sensor | N/A | Infrared transmission sensor | |||
|
Weighing capacity |
50kg | N/A | 50kg | N/A | 50kg | ||
|
Weighing |
50g (0～5kg)/ 100g (Over 5kg～50kg) |
N/A | 50g (0～5kg)/ 100g (Over 5kg～50kg) |
N/A | 50g (0～5kg)/ 100g (Over 5kg～50kg) | ||
|
Weighing range |
200g～50kg | ||||||
|
Weight sensor |
Loadcell | N/A | Loadcell | N/A | Loadcell | ||
|
Weighing units |
2 groups (SQ-2002/SQ-2202) 3 groups (SQ-2003/SQ-2203) |
N/A | 2 groups (SQ-3002/SQ-3302) 3 groups (SQ-3003/SQ-3303) |
N/A | 2 groups | ||
|
Conveyor speed |
30～120m/min (variable) | ||||||
|
Minimum article conveyance interval |
700mm (SQ-2002/SQ-2202) 400mm (SQ-2003/SQ-2203) |
400mm | 700mm (SQ-3002/SQ-3302) 400mm (SQ-3003/SQ-3303) |
400mm | 700mm | ||
|
Interfaces |
RS-232, RS-422, Ethernet (100BASE-TX), DIO (External control signal input / output), USB (Data storage only) | ||||||
|
Power supply |
三相,AC200V 50/60Hz | ||||||
|
Power consumption |
1.1kVA | ||||||
|
Operating temperature/ Humidity |
-10 ～ +40℃/ 15 ～ 85%RH (no condensation) | ||||||
|
Dimensions (mm) |
1735(L)× 1050(W)× 566(H) | 1735(L)× 1030(W)× 1240(H) | 1735(L)× 1350(W)× 566(H) | 1735(L)× 1350(W)× 1560(H) | 1735(L)× 1670(W)× 1560(H) | ||
|
Net weight |
400kg (SQ-2002) 405kg (SQ-2003) |
410kg (SQ-2202) 415kg (SQ-2203) |
390kg | 440kg (SQ-3002) 445kg (SQ-3003) |
460kg (SQ-3302) 465kg (SQ-3303) |
450kg | 500kg |
