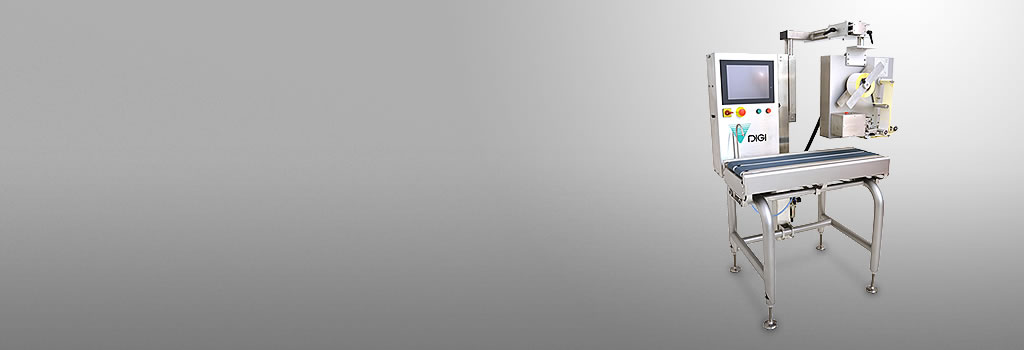

HC-700E
High speed print and apply system

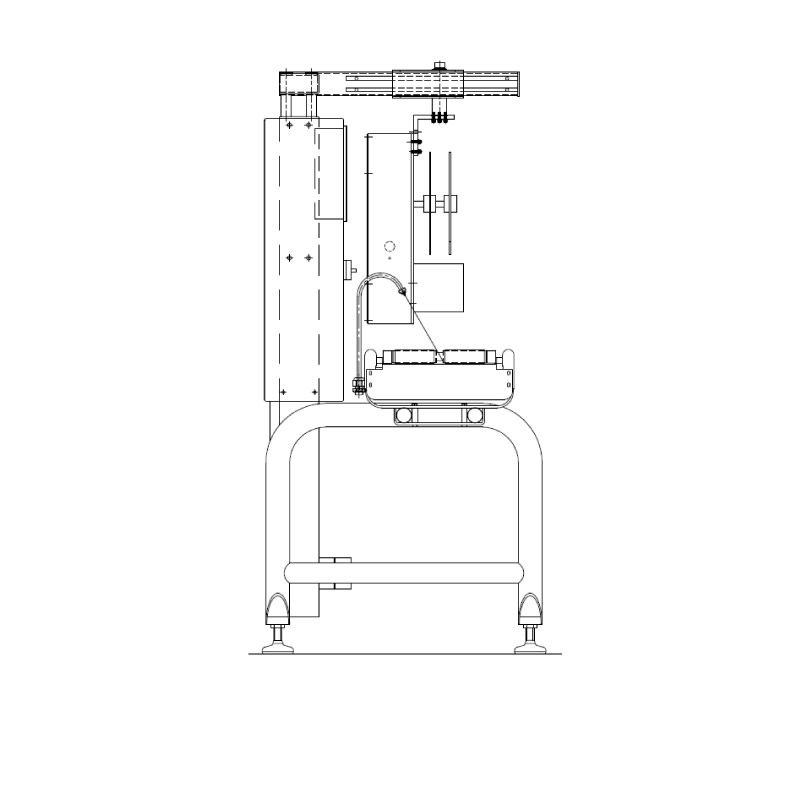

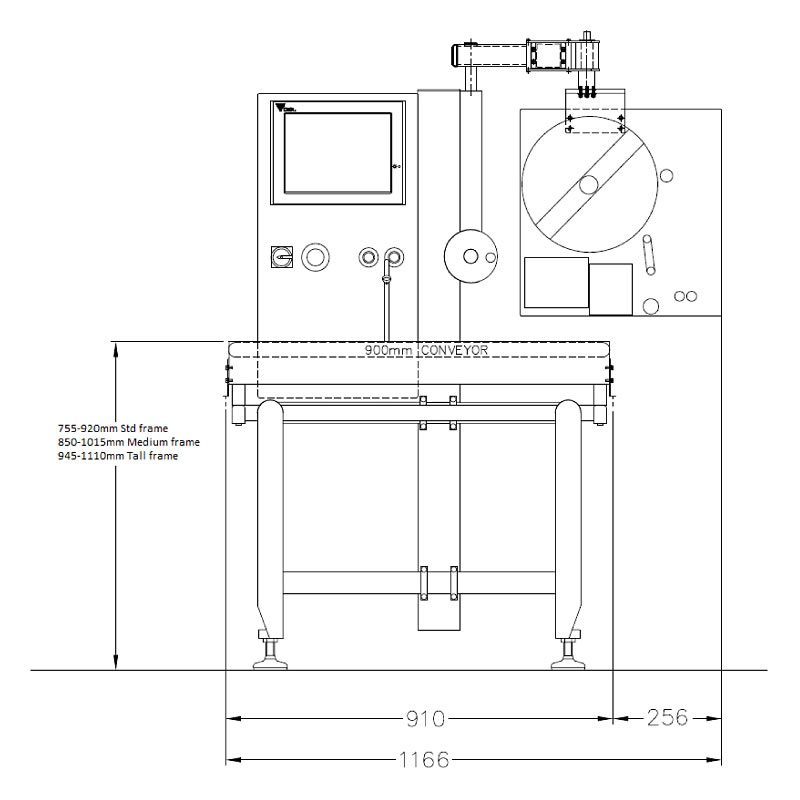

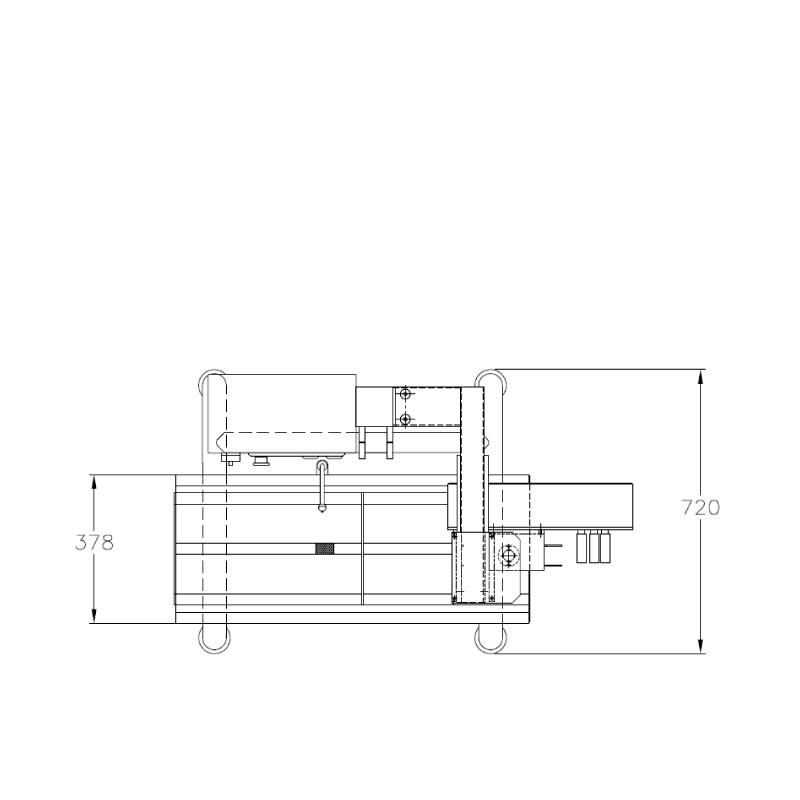

Dimensions
Display
| Screen | 12.1 colour high brightness TFT LCD |
|---|---|
| Touch panel | Sealed resistive touch screen |
Operation and general specification
| Standard conveyor length | 900mm |
|---|---|
| Conveyor speed | Independent control via potentiometer 0 to 50m/min |
Pack size
| Pack size capable | Width: 40 to 250mm, Height: 180mm maximum |
|---|
Labeler-LC
| Label size | Width: 36 to 90mm, Height: 40 to 105mm |
|---|---|
| Label roll | max 300mm diameter, 36mm & 76mm core, inside/outside wound |
| Label application system | air box |
| Print speed | 50 to 200mm/sec |
| Print head | 80mm at 300dpi |
