WIW-700
Automatic heavy duty weigh price labeler

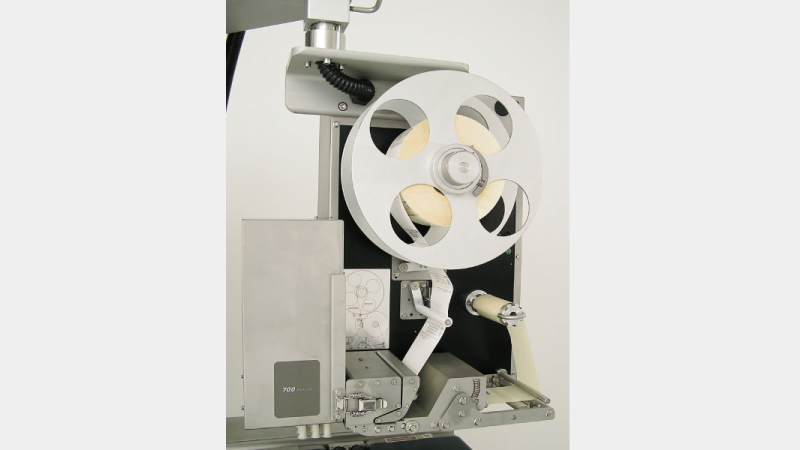

High speed labeler
80mm or 108mm thermal head both being 11.8dots/mm (300dpi)
Applicators - touch, air box,
Label size - Width: 30 to 120 mm
Height: 28 to 150mm
Label roll - Roll diameter 300mm
Core diameter 76mm
Outside or inside wound
Print speed - 50 to 260mm/sec
边缘附近的革命制度党nting
When the high speed labeler is used the outfeed conveyor is increased in length to 992mm
Applicators - touch, air box,
Label size - Width: 30 to 120 mm
Height: 28 to 150mm
Label roll - Roll diameter 300mm
Core diameter 76mm
Outside or inside wound
Print speed - 50 to 260mm/sec
边缘附近的革命制度党nting
When the high speed labeler is used the outfeed conveyor is increased in length to 992mm

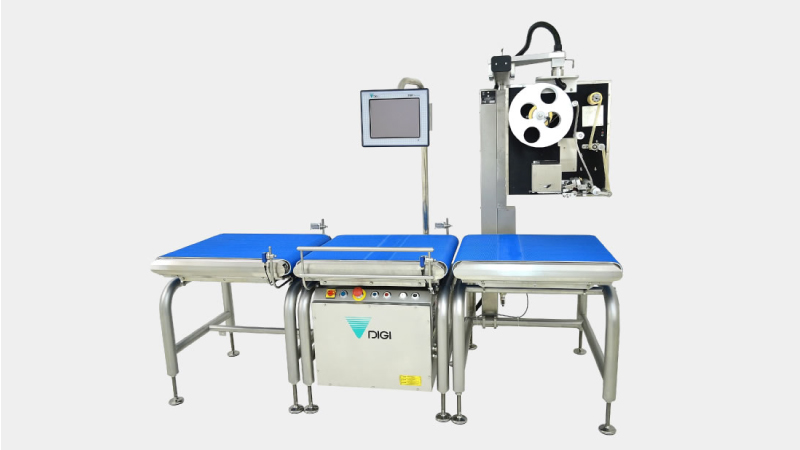

可选的给料运输机
An optional infeed conveyor can be added to the WIW-700. This infeed conveyor is the same length as the scale conveyor (765mm).

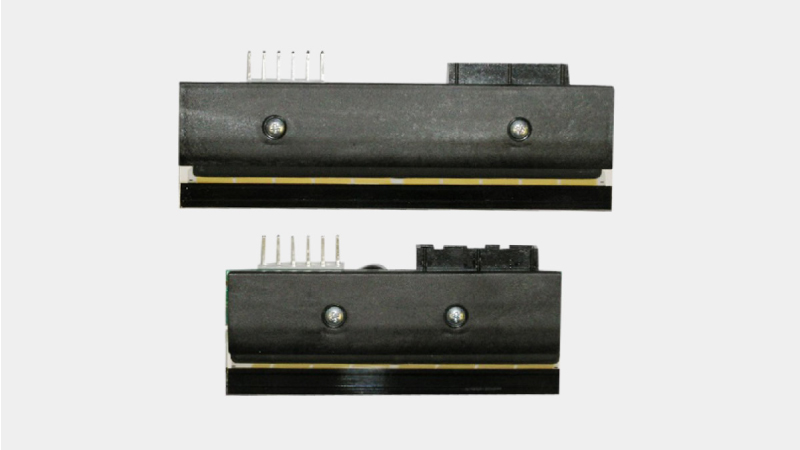

Thermal heads
As standard an 80mm wide thermal head is fitted to high speed and classic labelers. A 108mm wide thermal head is available for these two labelers. Both size thermal heads have the same definition of 300dpi (11.8 dots/mm).

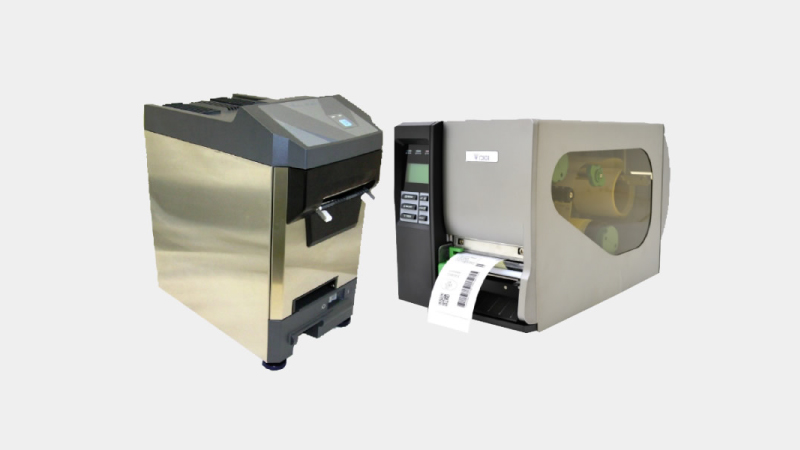

Additional printers
The flexibility of the WIW-700 allows other industrial type printers that support TCP/IP communication to be connected.
