SM-5100
Scale printer
Dimensions

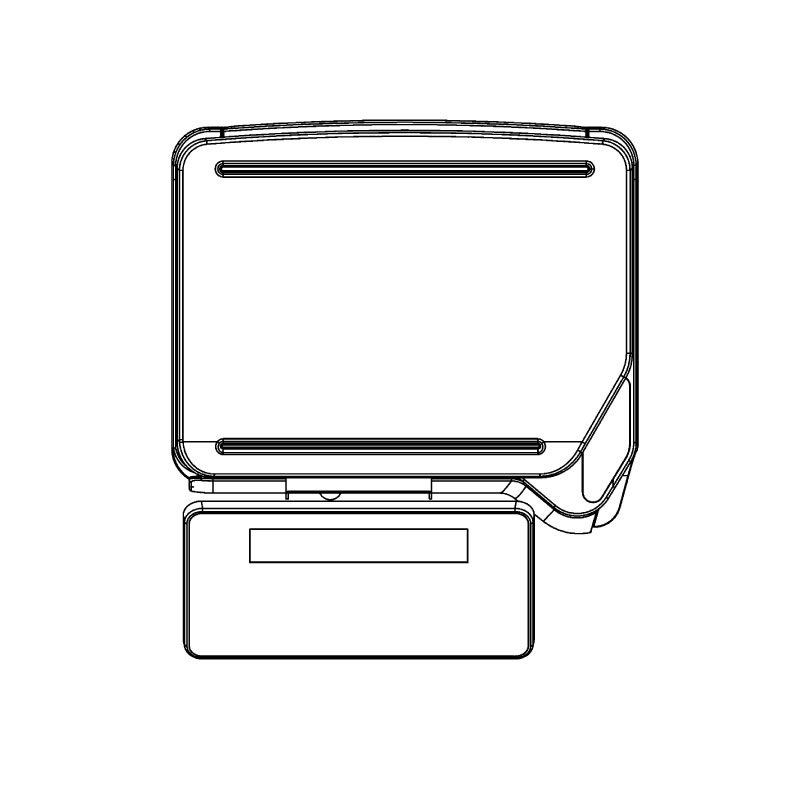

*Top View

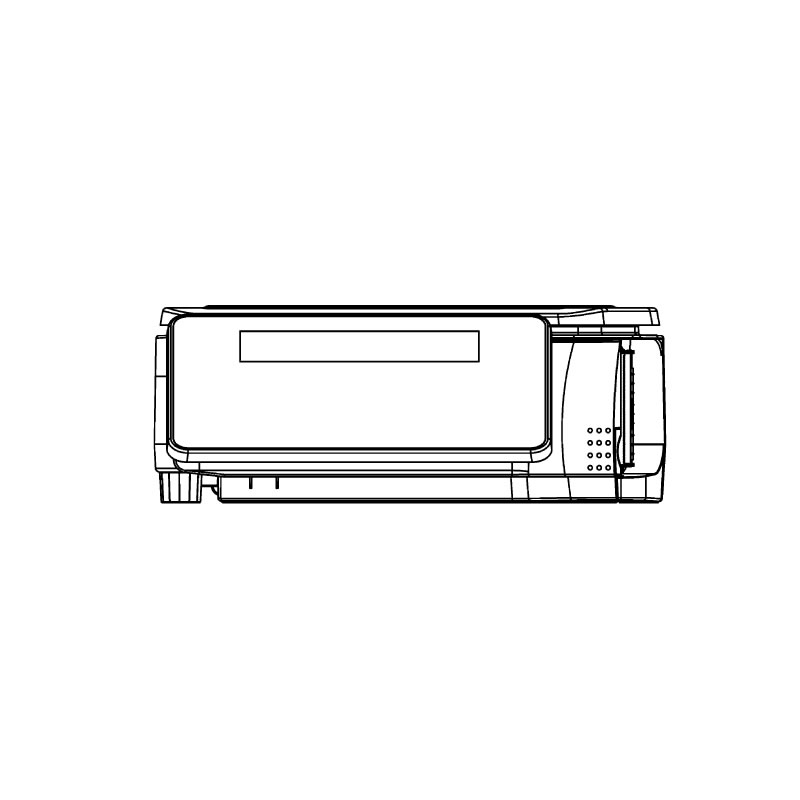

*Front View

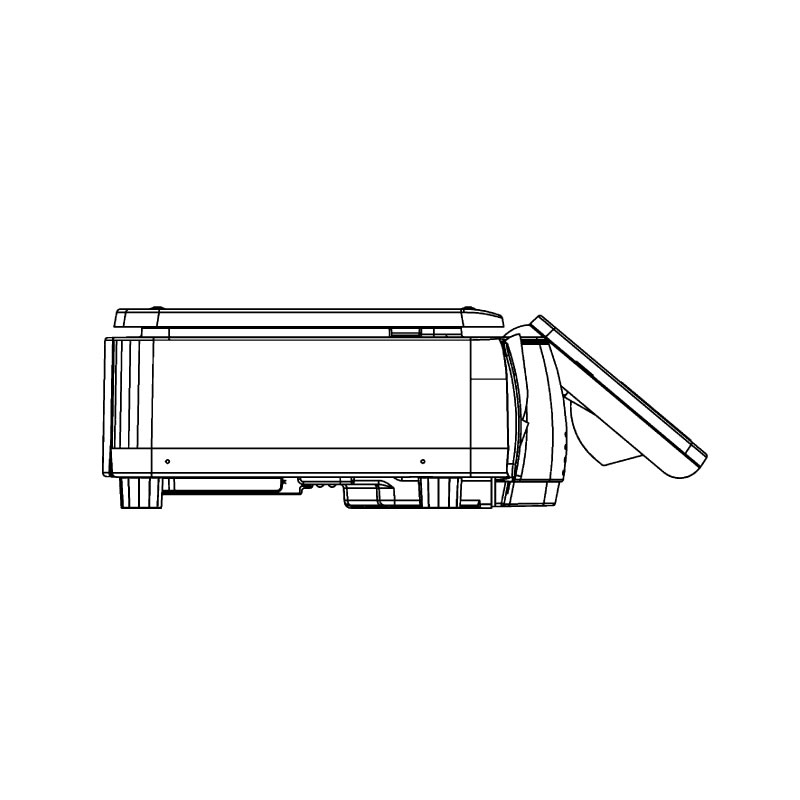

*Side View
Weighing
| Capacity | Max 6 kg | Max 15kg or 30lb | Max 30kg | |
|---|---|---|---|---|
| Single Interval | 1/ 3000 | e= 2g | e= 5g or 0.01lb | e= 10g |
| 1/ 6000 or 1/ 7500 | e= 1g | e= 2g | e= 5g | |
| Capacity | Max 3/ 6kg | Max 6kg/ 15kg | Max 15kg/ 30kg | |
| Multi Interval | 1/3000 | e= 1/ 2g | e= 2/ 5g | e= 5/ 10g |
Display
| Operator display | green LCD with backlight 32x202 dots |
|---|---|
| Customer display | green LCD with backlight 32x202 dots |
Specification by Model variation
| Variation | SM-5100B | SM-5100P | SM-5100EV | SM-5100BS |
|---|---|---|---|---|
| Number of Preset Keys | 32 | 56 | 56 | 72 |
| Memory Capacity | 2MB (Expandable up to 8MB) | |||
| Standard Interface | RS232C, Ethernet, Cash Drawer I/F | |||
Labeling
| Label Printing Size | Max. 60mmW x 220mmH |
|---|---|
| Paper Width | 60mm for Label 60mm for Receipt |
| Printing Speed-Label | Up To 150mm/s* |
* To achieve maximum high speed, high sensitivity thermal paper is necessary. Contact DIGI for details.
Options
| Memory Expansion Board (4MB/ 8MB) |
| Wireless LAN I/F (IEEE 802.11b/g) |
| Cash Drawer I/F |
