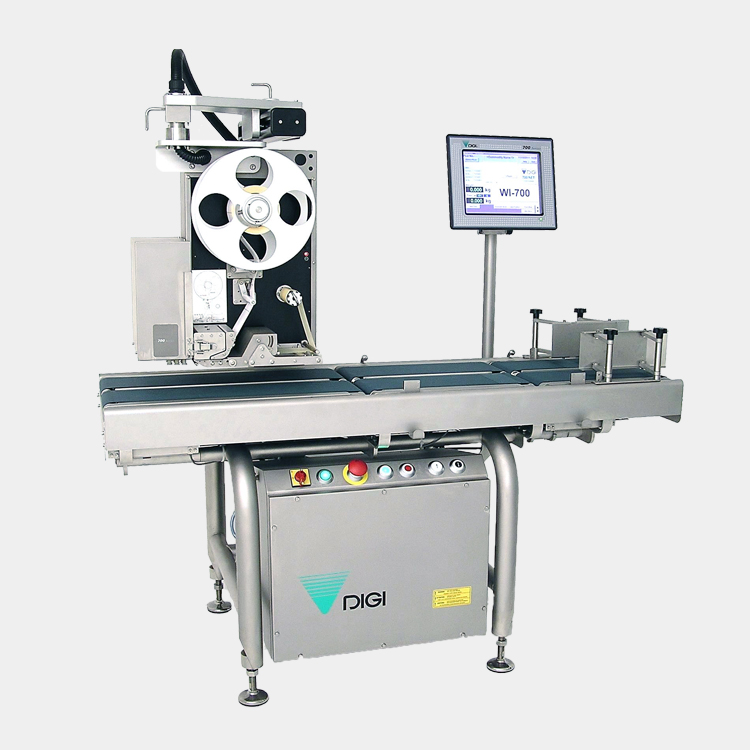

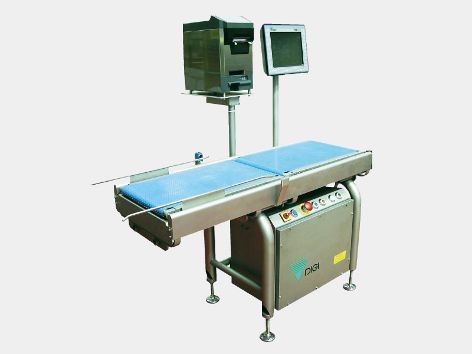

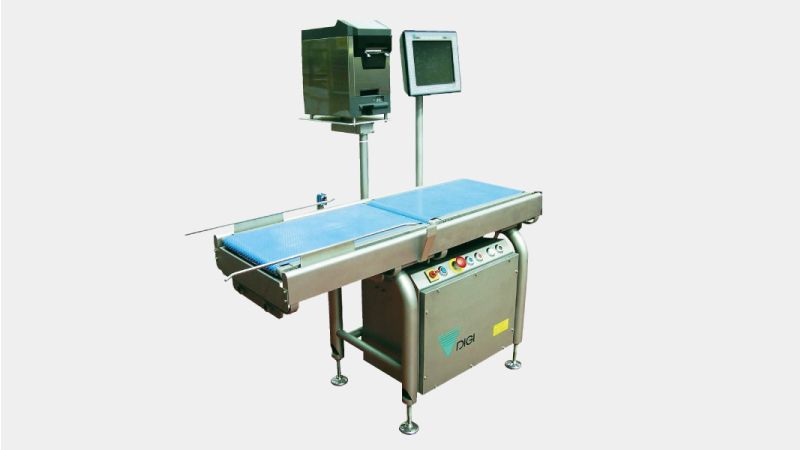

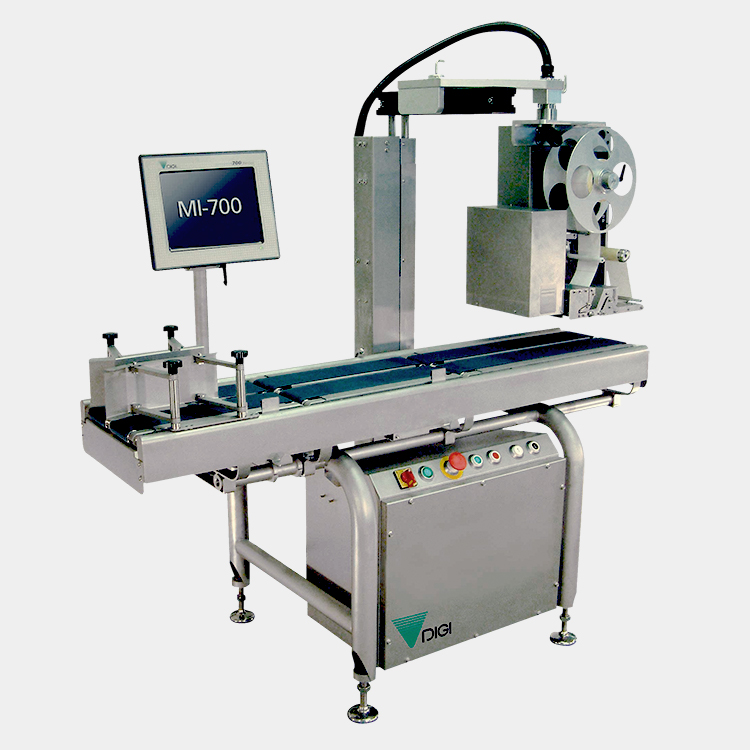

WIL-700

Wide and long conveyors for weigh price labeling of larger packs

^*For availability of this product type, please contact us.

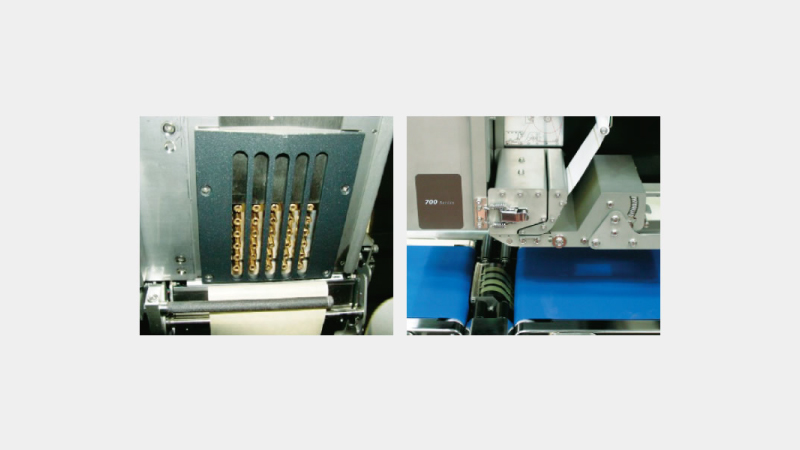

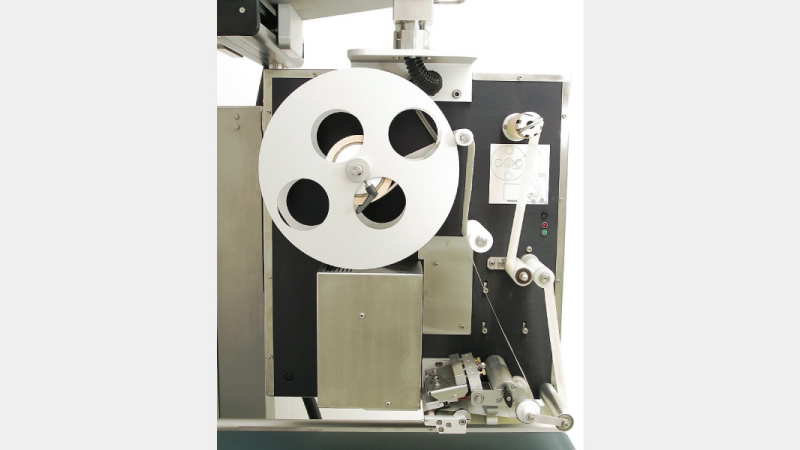

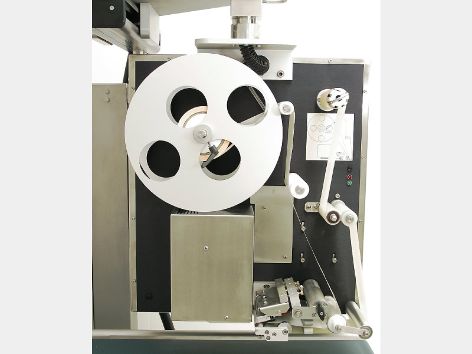

Classic labeler

80mm or 108mm thermal head both being 11.8dots/mm (300dpi)
Applicators - touch, air box, concave shoe, stamp
Label size - Width: 30 to 120 mm
Height: 28 to 150mm
Label roll - Roll diameter 300mm
Core diameter 76mm
Outside or inside wound
Print speed - 50 to 260mm/sec

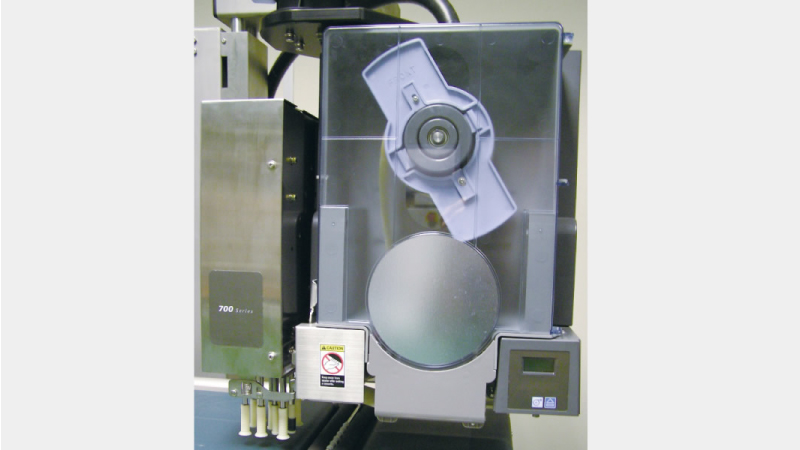

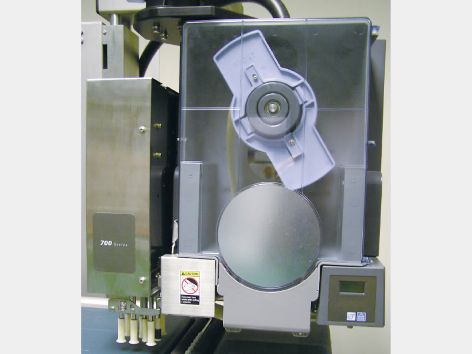

Cassette labeler

Separate cassette units are pre-loaded with the required labels to obtain quick label changes.
Hinged label applicator - allows the label applicator to be moved away from the thermal head area for good access for thermal head cleaning / inspection
Thermal head sizes - 80mm at 11.8dots/mm (300dpi)
Applicator - 11 finger touch
Label size - Width: 40 to 80 mm
Height: 28 to 80mm
Label roll - Roll diameter 190mm
Core diameter 76mm
Outside or inside wound
Print speed - 50 to 200mm/sec

Total Printer

The WIL has the ability to easily connect to other types of printers giving the flexibility of outer case label and total label operations.

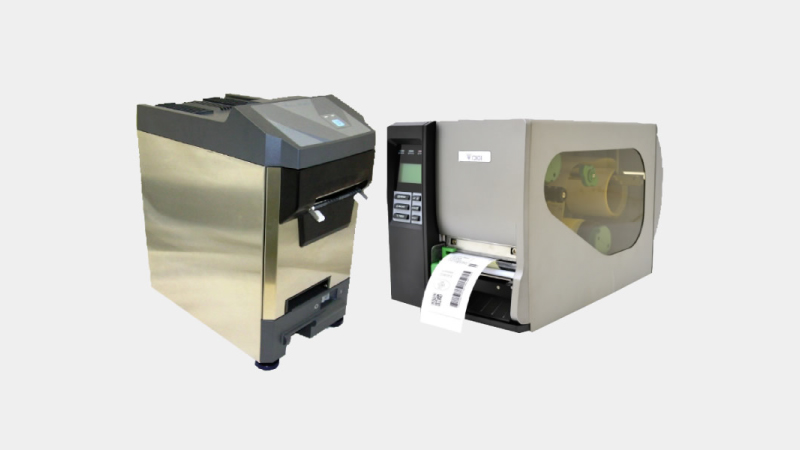

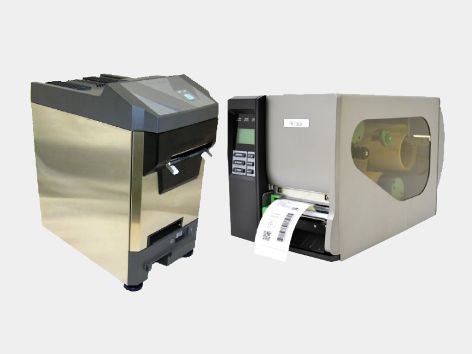

Additional printers

The flexibility of the WIL-700 allows other industrial type printers that support TCP/IP communication to be connected.

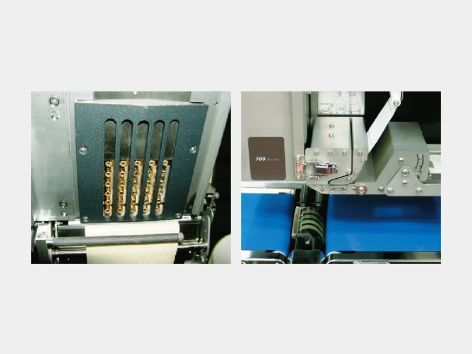

Label applicators

DIGI has a range of label applicators to reliably apply many shapes and sizes of labels to the pack.

Options

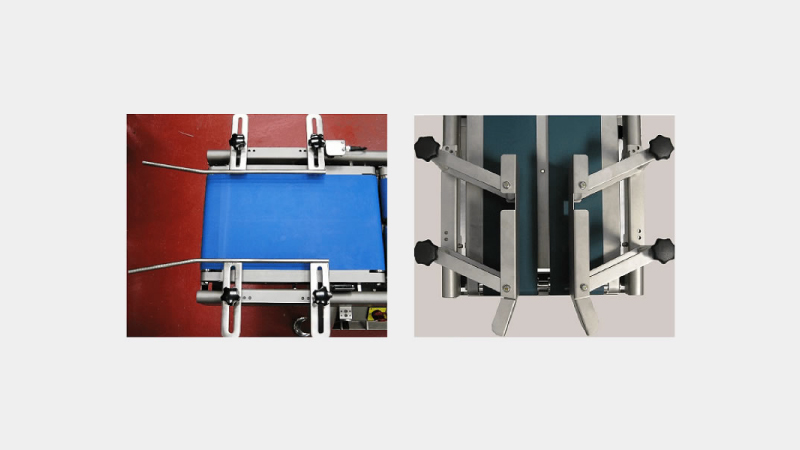

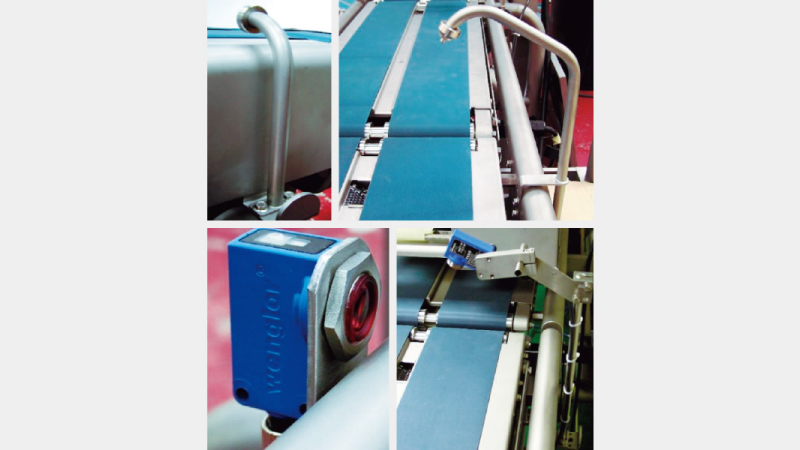

Pack guides

There are various pack guides to suit different types of packs. Examples of these are the infeed rod guides, outfeed rod guides, HDPE material type and tall version of the standard HI guides.

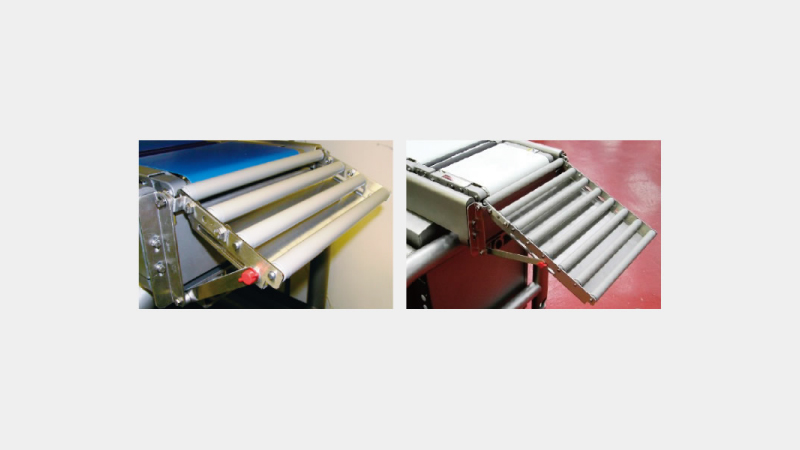

Gravity outfeed rollers

A gravity roller kit can be fixed to the outfeed of the machine.
Two widths and two lengths are available.
Once fixed to the machine the angle of which the roller assembly sits can be adjusted.

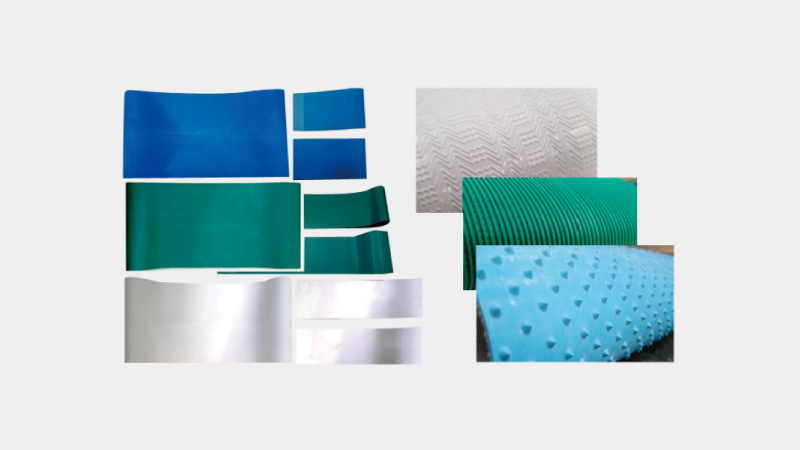

Conveyor belts

A wide range of conveyor belts is available to cater for many different applications and environments.

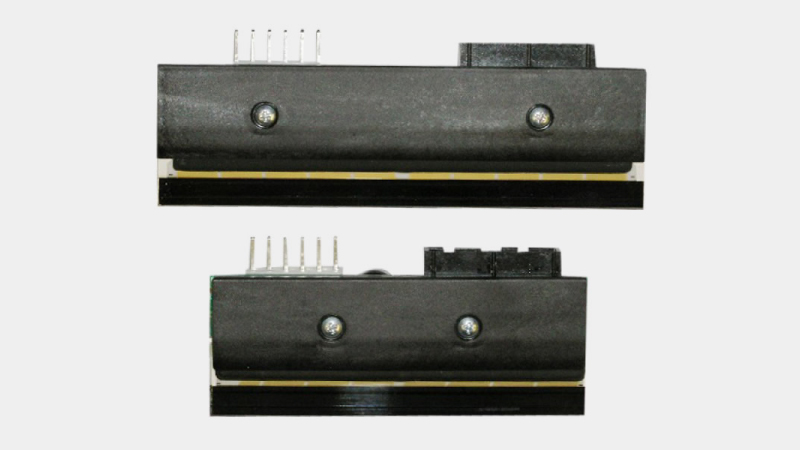

Thermal heads

As standard an 80mm wide thermal head is fitted to high speed and classic labellers. A 108mm wide thermal is available for these two labellers. Both size thermal heads have the same definition of 300dpi (11.8 dots/mm).

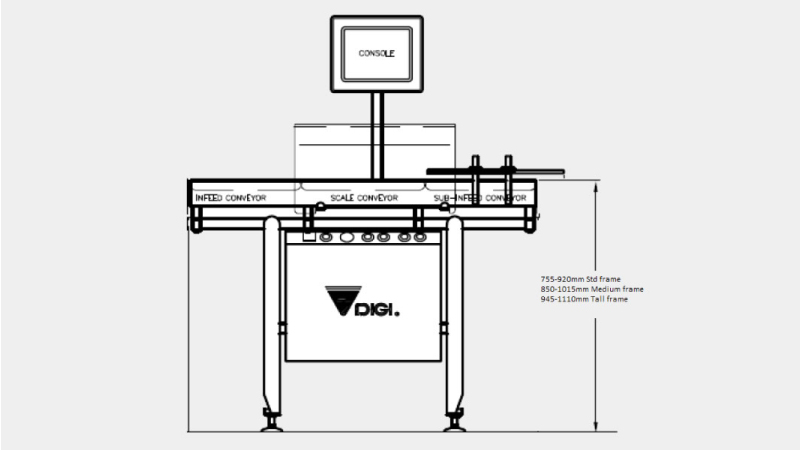

Frame height

To cater for various height production lines, there are three frame height options. The standard height frame gives a conveyor height range of 755-920mm, medium frame 850-1015 and the tall frame option gives a conveyor height range of 945-1110mm.
