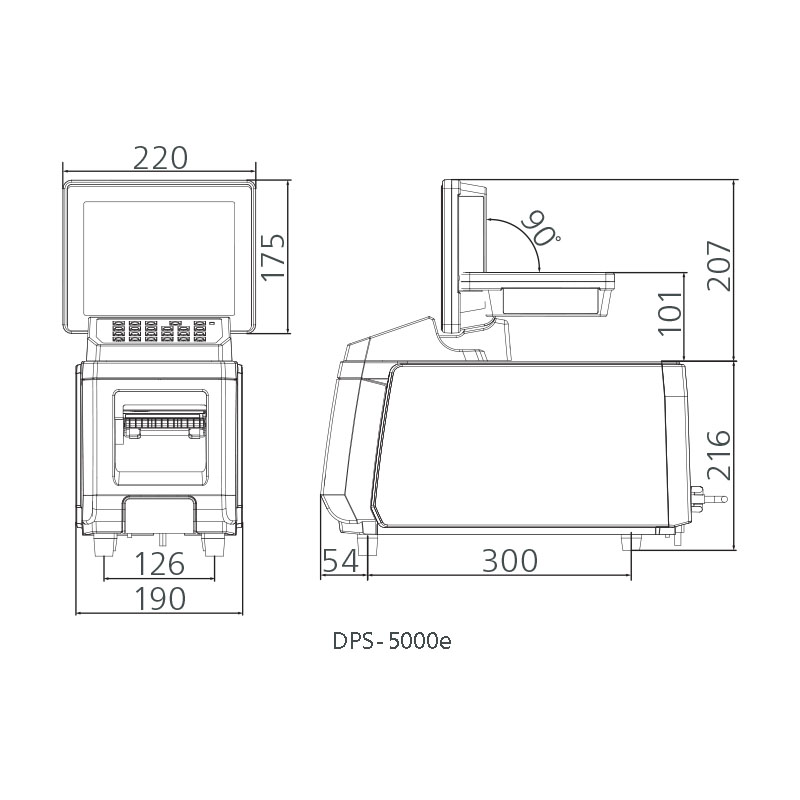

| Dimension W x D x H (mm) |
DPS-5000e |
220 x 423 x 423 |

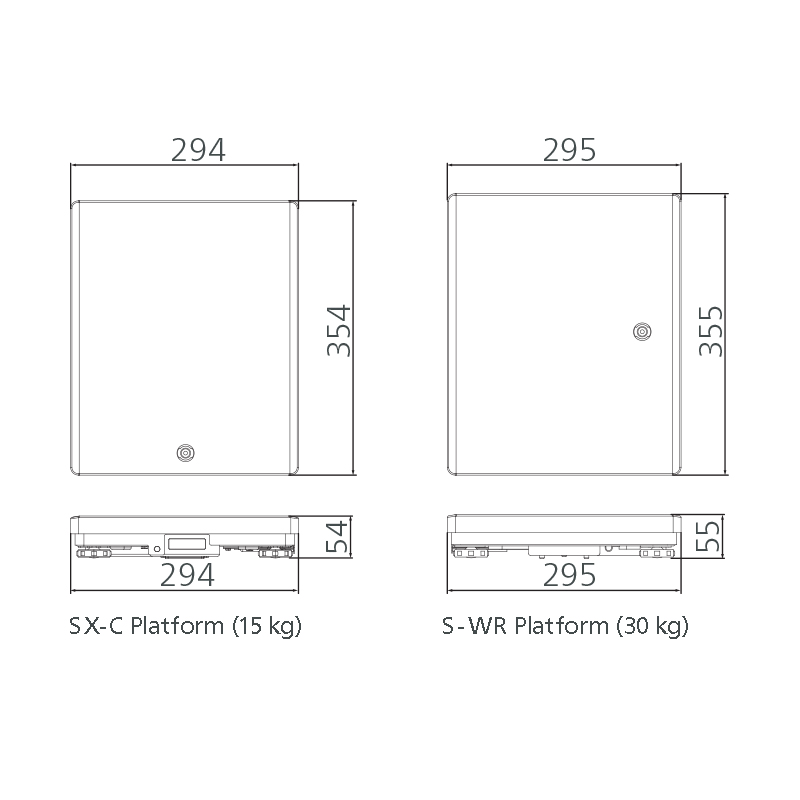

| 平台 |
SX-C (15kg): 294 x 354 x 54 |
S-WR(30公斤):295 x 355 x 55 |

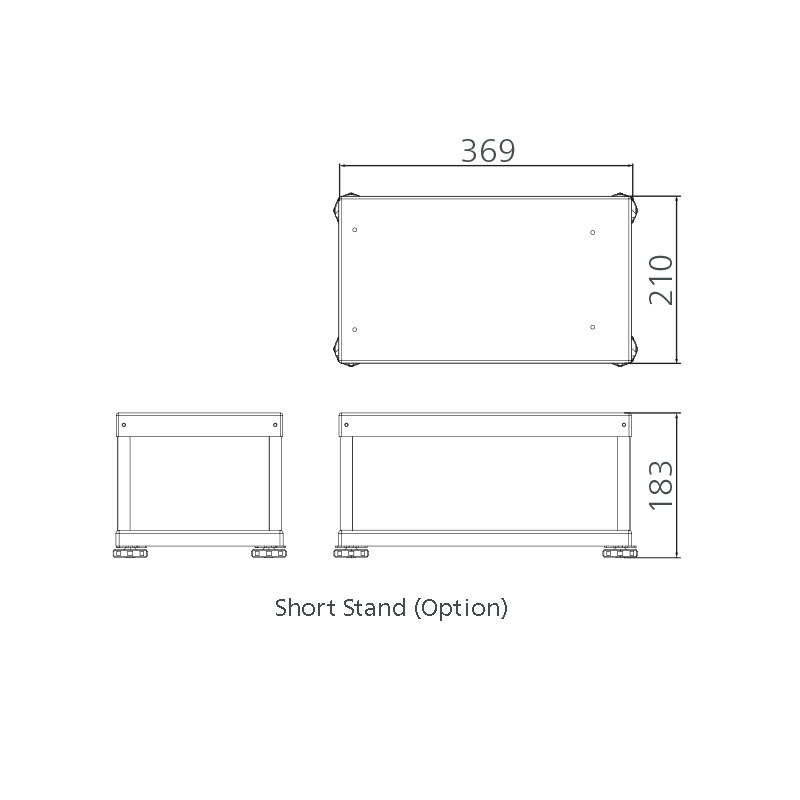

| Short Stand (Option) |
210 x 369 x 183 |
| Operation Display |
8.4" TFT SVGA with Touch Panel |
| Display Size W x D (Pixels) |
800 x 600 |
| Display Rotatable Degree |
+ / - 30 degree left and right ; 90 degree up and down |
| Label / Receipt |
Types |
Liner |
Linerless with Auto-Cutter |
| Roll Diameter |
Max 125mm |
Max 125mm |
| Roll Width |
Max 80mm |
Max 80mm |
| Print Width |
Max 80mm |
Max 80mm |
| Printing Speed |
Max 150mm / second* |
Max 150mm / second* |
| Print Resolution |
300 dpi |
300 dpi |
| Barcode Type |
Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, RSS, PDF417 (For Receipt Only), GS1, QR Code, Datamatrix |
| Power Source |
AC 100V / 220V |
| Power Consumption |
80W |
| Operating Temperature |
-10℃ to +40℃ |
| Humidity |
15% to 85% RH Non-Condensation |
| Standard Interface |
2 x RS232C, Ethernet 10 / 100 Base T, 4 x USB 2.0, SD Socket |
| Net Weight |
DPS-5000e |
11.2 kg |
| 平台 |
SX-C: 6.65 kg |
S-WR: 4.5 kg |
| Short Stand (Option) |
3.4公斤 |
