w - 5600 srx

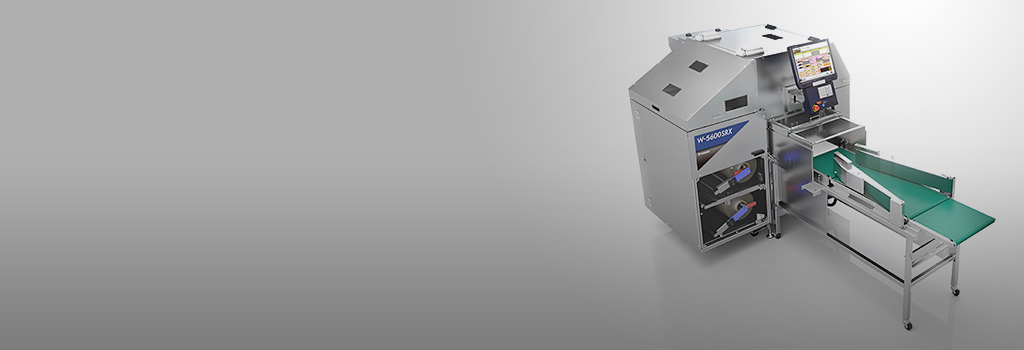

High-speed in-line stretch wrapping system
Dimensiones

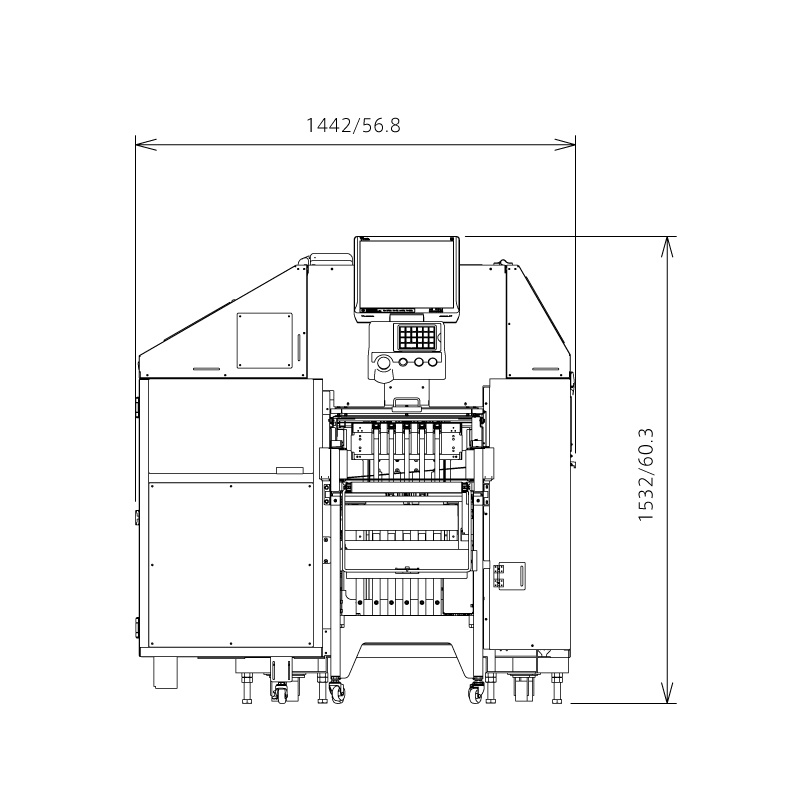

*Front View
unit = mm/inches

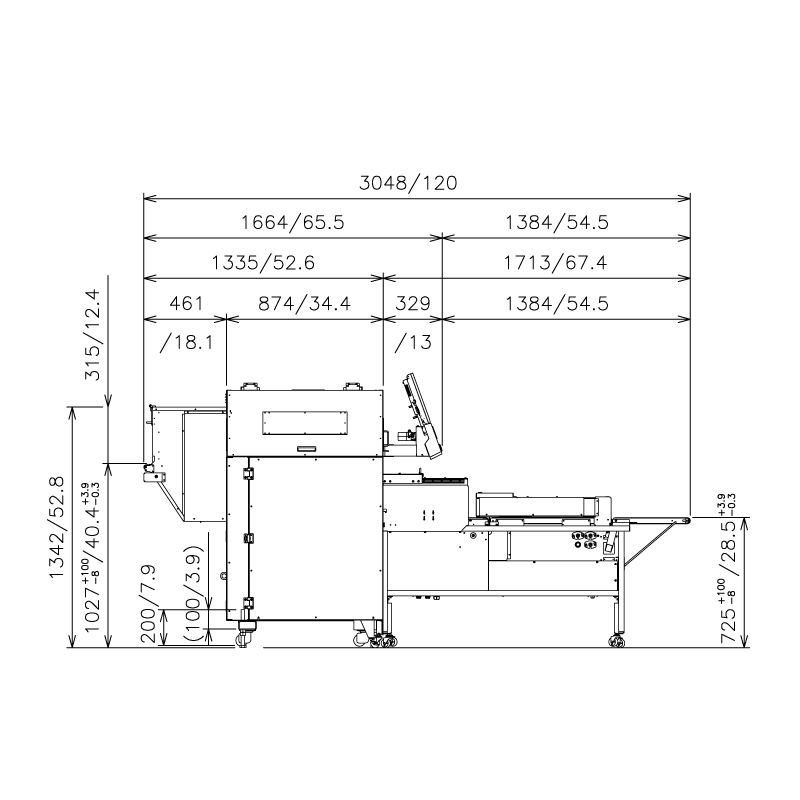

*Side View

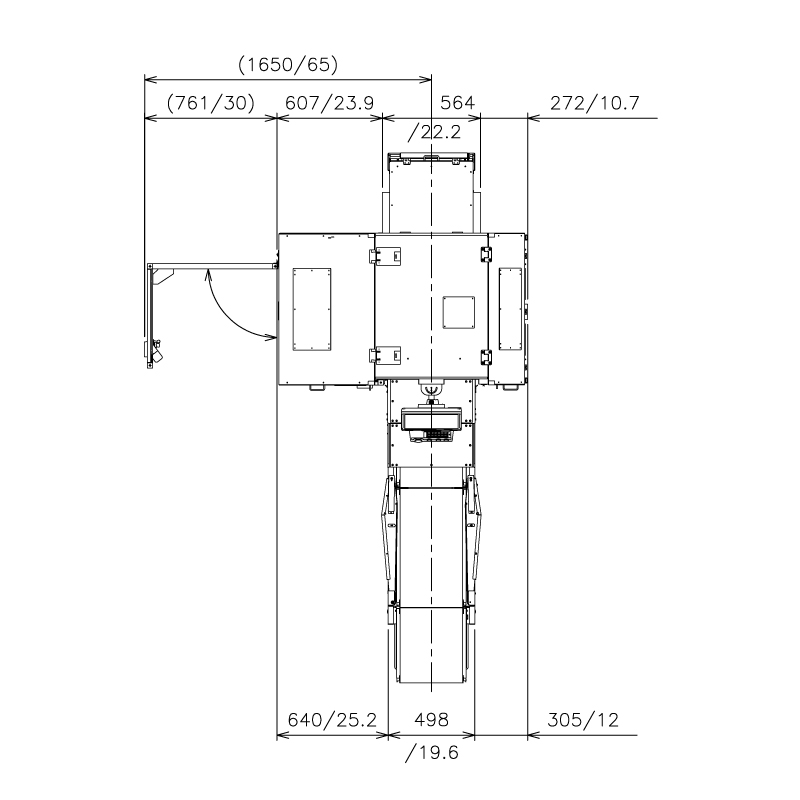

*Top View
Wrapping
| Wrapping method | 拉伸包装method |
|---|---|
| Max. wrapping capacity | Up to 5kg |
| Wrapping speed | Max. 1 package/sec. (60 packages/min.) |
| Package size |
Width: 130 - 380mm (5.1" - 15")
Height: 10 - 150mm (0.4" - 5.9") Depth: 80 - 260mm (3.1"- 10.2")
The combination of maximum size of each dimensions cannot be used. The package size that can be wrapped also depends on the dimensions of the film in use. |
| Film roll capacity | Two rolls (auto-switching) |
| Film type | PVC, Polyethylene |
| Film width |
300 - 500mm (12" - 19.7")
Due to machine settings, the width difference between the two films in use has to be 50mm or 50mm increments.
|
Operation console
| Display panel | TFT LCD color (15 inches) touch panel |
|---|---|
| Keypad | Mechanical keys and touch screen |
| Memory capacity for programmable files | 18 GB |
General
| Power source and power consumption | AC220-240V; 50/60Hz; 14A, 2.7kW |
|---|---|
| Net weight | Approx. 600kg/1,322 lbs. |
